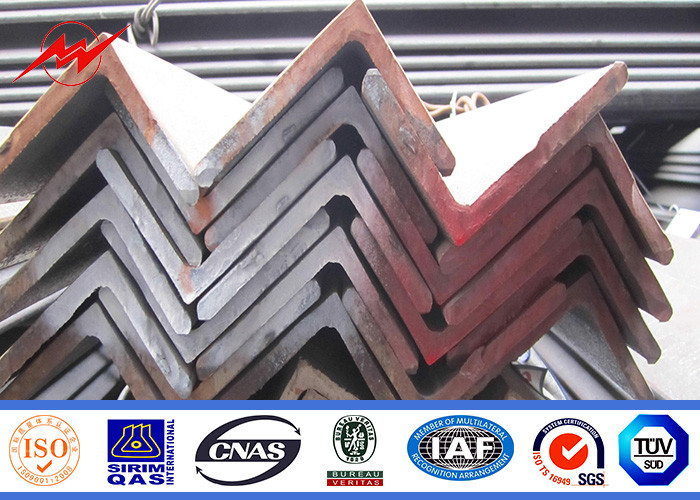

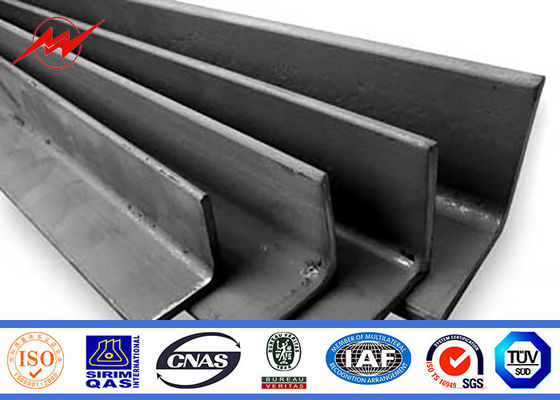

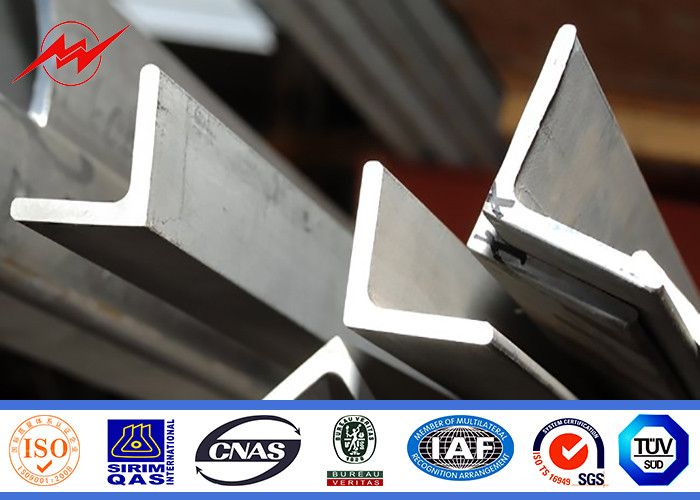

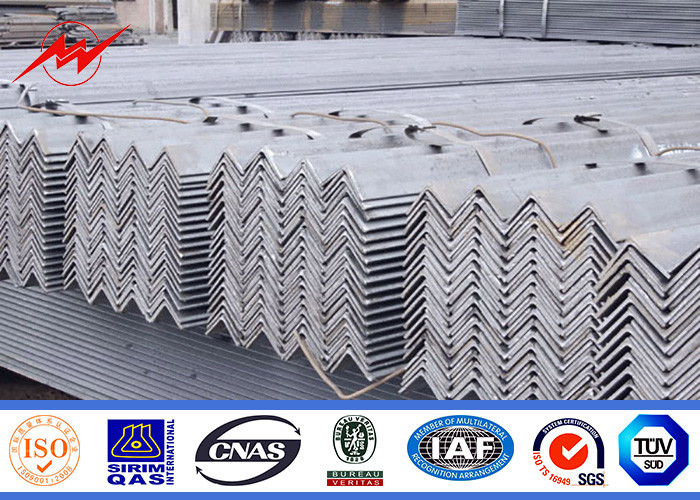

Hot Rolled Mild Structural Angle Steel 100x100 For Construction
angle steel is commonly known as angle iron, both sides perpendicular angle steel shape of strip steel. angle steel can be divided into equilateral angle steel and unequal angle steel. Wide angle steel two sides are equal. angle steel's specifications to the border thickness x width x thickness of mm number.
Specifications:
|
Standard sectional dimension mm *mm |
Weight kg/m |
Standard sectional dimension mm *mm |
Weight kg/m |
|
25*25*3 |
1.12 |
90*90*6 |
8.28 |
|
30*30*3 |
1.36 |
90*90*7 |
9.59 |
|
40*40*3 |
1.83 |
90*90*10 |
13.3 |
|
40*40*5 |
2.95 |
100*100*7 |
10.7 |
|
45*45*4 |
2.74 |
100*100*10 |
14.9 |
|
45*45*5 |
3.38 |
100*100*13 |
19.1 |
|
50*50*4 |
3.06 |
120*120*8 |
14.7 |
|
50*50*6 |
4.43 |
130*130*9 |
17.9 |
|
60*60*4 |
3.68 |
130*130*12 |
23.4 |
|
60*60*5 |
4.55 |
130*130*15 |
28.8 |
|
60*60*6 |
5.37 |
150*150*12 |
27.3 |
|
65*65*6 |
5.91 |
150*150*15 |
33.6 |
|
65*65*8 |
7.66 |
150*150*19 |
41.9 |
|
70*70*6 |
6.38 |
175*175*12 |
31.8 |
|
75*75*6 |
6.85 |
175*175*15 |
39.4 |
|
75*75*9 |
9.96 |
200*200*15 |
45.3 |
|
80*80*6 |
7.32 |
200*200*20 |
59.7 |
|
80*80*7 |
8.48 |
200*200*25 |
73.6 |
application:
angle steel is widely used in a variety of architectural and engineering structures, such as beams, bridges, transmission towers, hoisting and conveying machinery, ships, industrial furnaces, towers, containers and warehouses .
