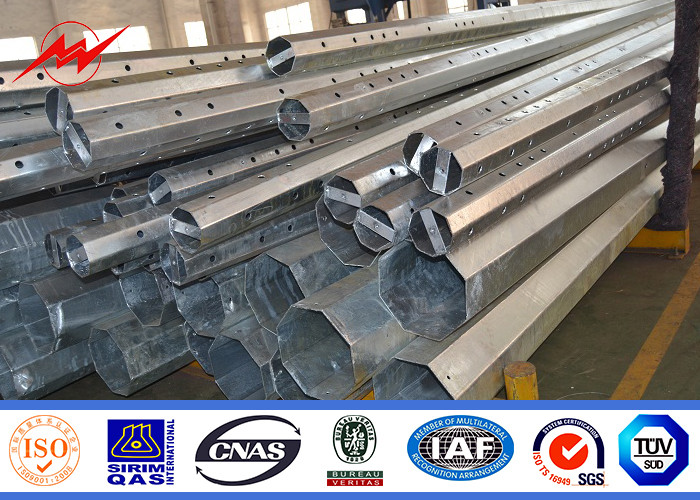

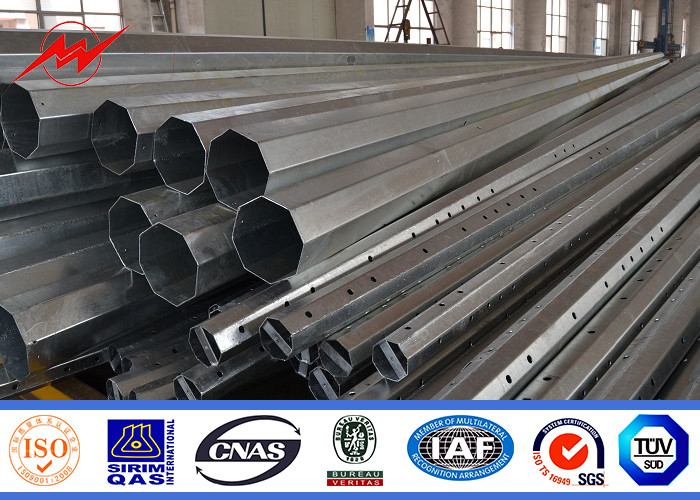

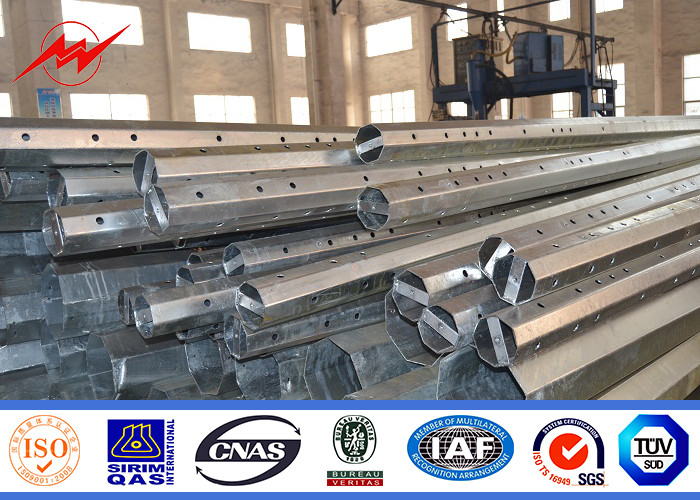

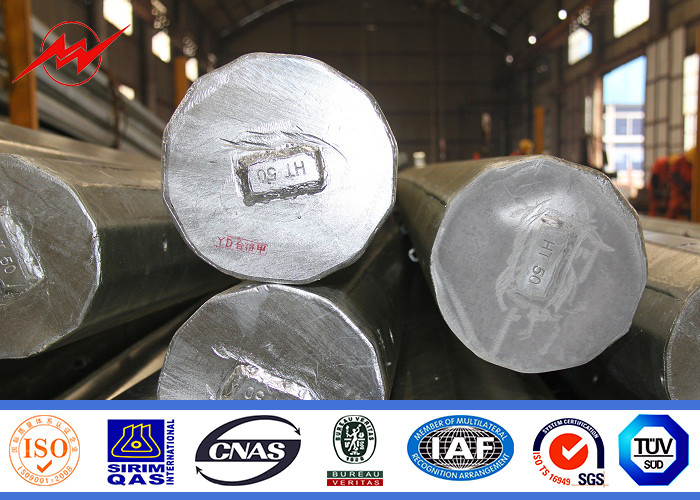

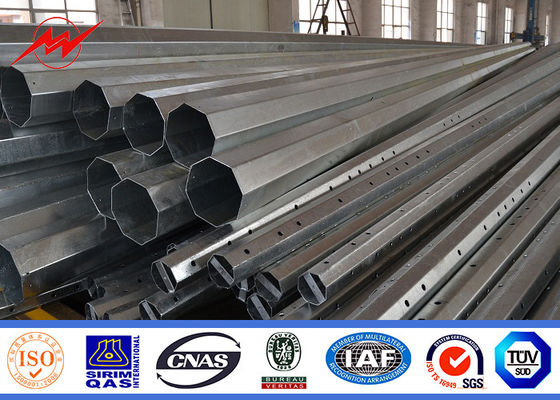

Polygonal 3mm 30FT Electric Steel Pole with Galvanization and Bitumen
Specifications:
| Philippines NPC Specification | |||||
| ITEM | STEEL POLE | ||||
| TYPE | LENGTH | TIP DIAMETER | BUTT DIAMETER | THICKNESS | |
| (FT) | (MM) | (MM) | (MM) | ||
| 1 | B | 50 | 200 | 370 | 6 |
| 2 | E | 50 | 200 | 585 | 6 |
| 3 | HT | 50 | 200 | 520 | 6 |
| 4 | B | 55 | 200 | 395 | 6 |
| 5 | E | 55 | 200 | 625 | 6 |
| 6 | HT | 55 | 200 | 550 | 6 |
| 7 | B | 60 | 200 | 415 | 6 |
| 8 | C | 60 | 250 | 730 | 6 |
| 9 | D | 60 | 300 | 765 | 7 |
| 10 | E | 60 | 200 | 660 | 6 |
| 11 | HS | 60 | 200 | 400 | 6 |
| 12 | HT | 60 | 200 | 580 | 6 |
| 13 | B | 65 | 200 | 435 | 6 |
| 14 | C | 65 | 250 | 770 | 6 |
| 15 | D | 65 | 300 | 755 | 8 |
| 16 | E | 65 | 200 | 700 | 6 |
| 17 | HT | 65 | 200 | 615 | 6 |
| 18 | B | 70 | 200 | 455 | 6 |
| 19 | C | 70 | 250 | 805 | 6 |
| 20 | D | 70 | 300 | 790 | 8 |
| 21 | E | 70 | 200 | 740 | 6 |
| 22 | HT | 70 | 200 | 645 | 6 |
| 23 | 3T | 70 | 250 | 640 | 6 |
| 24 | 3D | 70 | 300 | 765 | 6 |
| 25 | spare type D | 70 | 300 | 790 | 8 |
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
Technical information-Cross Arm
Inspection
To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt,especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
FAQ
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5. Warranty : 30 years
6.Surface treatment :hot dip galvanization
More Photos:
