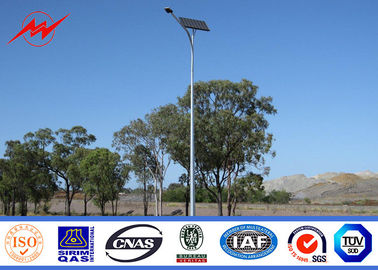

12m Q235 Steel galvanized hot dip galvanized Street Light Poles with cross arm
Specification:
|
Specification: |
20-50 meters street light pole |
|
Type |
street light pole |
|
Shape |
conical, hexagonal and octagonal |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
Octagonal Conical tapered column |
|
Length of per section |
Within 14m once forming without slip joint. |
|
high mast pole suit for |
city square,wharf,stadium |
|
Option of high mast pole |
Height from 20m to 35m |
|
Production Process of high mast pole |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |
·Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
(Other Material is Available on Request)
·Hot Dip Galvanized (≥86um)
·Any Color Polyester Powder Coated (≥100 um)
·Taper Conical , Octagonal, Polygon Section
·With demounted bracket design,easy loaded,install,and maintenance
·Theftproof slide lock
·Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, High Mast,highmast light poles,
