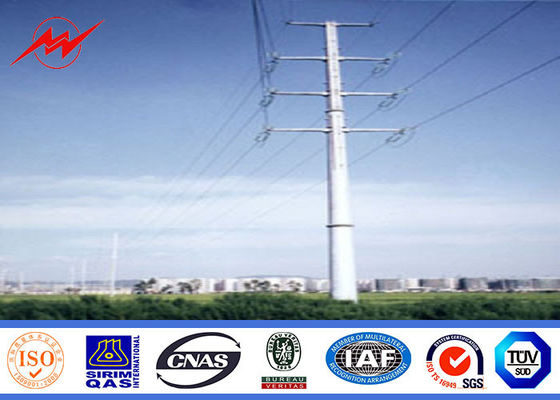

| Type: | Hot dip galvanized steel poles Steel Utility Pole for 69kv transmission | Shape: | Round,Conical |
|---|---|---|---|
| Material Grade: | Q235,Q345,Gr65 | Thickness: | 2.5mm-16mm |
| Surface Finished: | Hot Dip Galvanized | Standard: | /BV/ISO9001 |
| แสงสูง: | electrical utility poles,electric telescoping pole |
||
Cheapest telecom tower Steel Utility Pole for 120kv overheadline project
Material:
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q235 |
Grade D |
SS400,S235JO |
|
Q345 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
Features:
|
Pole’s height |
All available |
|
Type |
Straight Pole ,Tensile Pole ,Turn Pole,etc |
|
Shape of pole |
Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc |
|
Crossarm |
Single or double crossarm, dimension as per customers’ requirement |
|
Material |
Steel materials conform to ASTM A36, Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65 |
|
Wall thickness |
≥2.5mm |
|
Once forming |
13m without joint |
|
Welding |
Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection. |
|
Joint |
Joint with insert mode, flange mode. |
|
Base plate mounted |
Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement. |
|
Galvanizing |
Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123. |
|
Voltage |
10KV~550KV |
|
Certificates |
ISO9001-2008 , AAA credit rating, etc |
|
Protection |
Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area |
1.Prices conditions
Price can be FOB, CIF ,EXW, or With taxes.
2.What will be the delivery time and what will be the mode of payment?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.
50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction,Letter of credit,Paypal,Western Union.
3.Shipment will be over sea or by air?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation,
and oversea for led lights,and can be customized by your requirements.
4.Could you please send me the sample for the same. So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
5.Will there be any contract for this business or trade?
Yes, there is a normal contract before the order is placed.
