20M 12KN 4mm Steel Utility Pole for Electrical Power Transmission
Specifications:
| Suit for | Electricity distribution |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Torlance of the dimenstion | +- 2% |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding |
We has past flaw testing.Internal and external double welding makes |
| Thickness | 1 mm to 30 mm |
| Production Process |
Rew material test → Cuttingj →Molding or bending → |
| Packages |

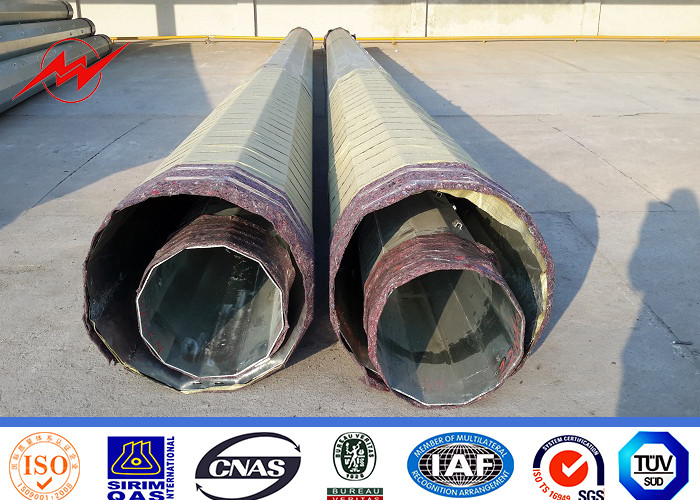

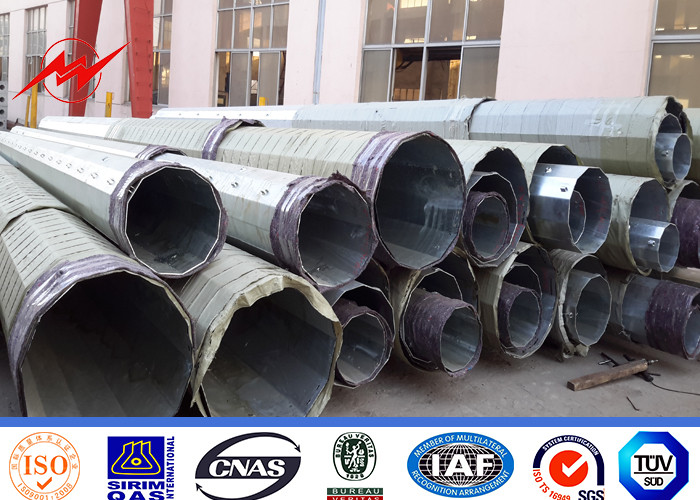

Our poles as normal cover by Mat or straw bale at the top and bottom , |
Material
Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Design:
We have our standard pole with our design, OEM and ODM is also accpetable
