รายละเอียดสินค้า:
การชำระเงิน:
|
| Product Name: | Steel Electric Power Poles | Application: | Power Distribution |
|---|---|---|---|
| Surface treatment: | galvanization powder coating | Welding standard: | AWS D 1.1 |
| Galvanization standard: | ASTM A 123 | Lift time: | 50 years |
| Warranty: | 15 years | ||
| แสงสูง: | metal power poles,electric utility poles |
||
Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission
Specification:
| series | Outside Diametar | Wall Thicness | Plain and Tubes | |
| mm | Min. | mm /SWG | Kg./M | Mtrs./Ton |
| 15 L | 21.3 | 2 | 0.947 | 1058 |
| M | 2.6 | 1.21 | 826 | |
| H | 3.2 | 1.44 | 694 | |
| 20 L | 26.9 | 2.3 | 1.38 | 725 |
| M | 2.6 | 1.56 | 641 | |
| H | 3.2 | 1.87 | 535 | |
| 25 L | 33.7 | 2.6 | 1.98 | 505 |
| M | 3.2 | 2.41 | 415 | |
| H | 4 | 2.93 | 341 | |
| 32 L | 42.4 | 2.6 | 2.54 | 394 |
| M | 3.2 | 3.1 | 323 | |
| H | 4 | 3.79 | 264 | |
| 40 L | 48.3 | 2.9 | 3.23 | 310 |
| M | 3.2 | 3.56 | 281 | |
| H | 4 | 4.37 | 229 | |
| 50 L | 60.3 | 2.9 | 4.08 | 245 |
| M | 3.6 | 5.03 | 199 | |
| H | 4.5 | 6.19 | 162 | |
| 65 L | 76.1 | 3.2 | 5.71 | 175 |
| M | 3.6 | 6.42 | 156 | |
| H | 4.5 | 7.93 | 126 | |
| 80 L | 88.9 | 3.2 | 6.72 | 149 |
| M | 4 | 8.36 | 120 | |
| H | 4.8 | 9.9 | 101 | |
| 90 L | 101.6 | 3.6 | 8.7 | 115 |
| M | 4 | 9.63 | 144 | |
| H | 4.8 | 11.5 | 87 | |
| 100 L | 114.3 | 3.6 | 9.75 | 103 |
| M | 4.5 | 12.2 | 82 | |
| H | 5.4 | 14.5 | 69 | |
| 110 L | 127 | 4.5 | 13.6 | 74 |
| M | 4.8 | 14.5 | 69 | |
| H | 5.4 | 16.2 | 62 | |
| 125 L | 139.7 | 4.5 | 15 | 67 |
| M | 4.8 | 15.9 | 63 | |
| H | 5.4 | 17.9 | 56 | |
Description:
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

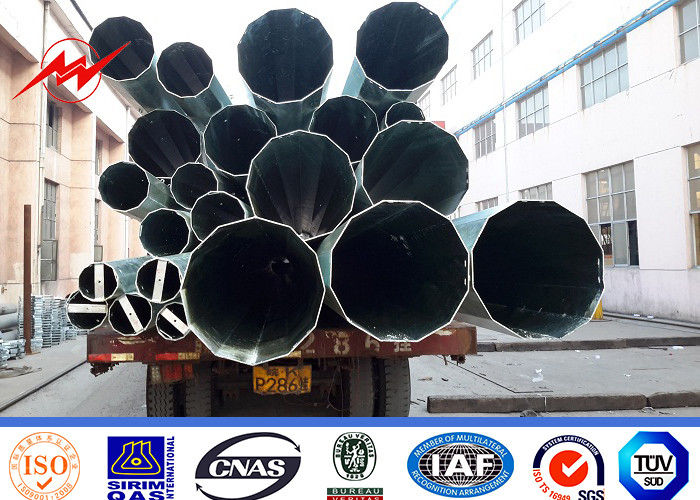

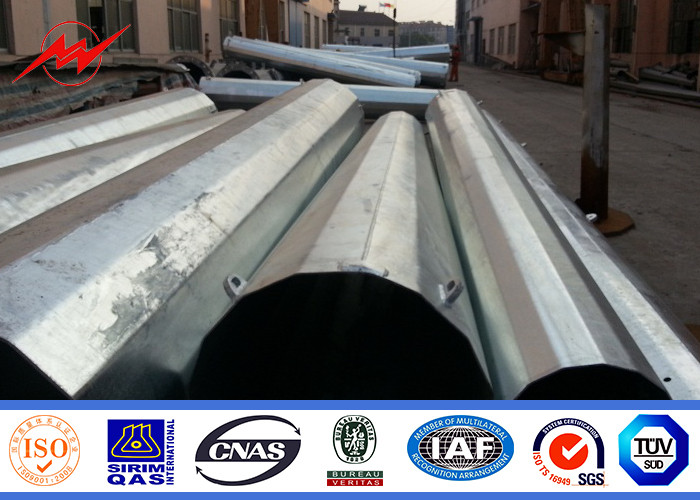

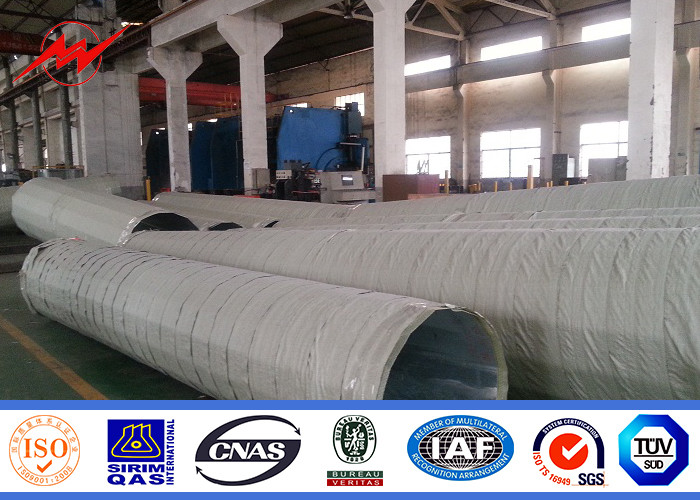

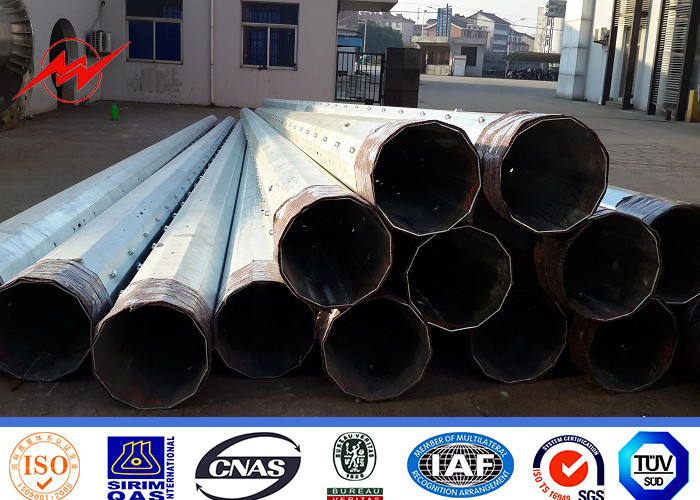

More Photos:
