Power Line 11m 8KN Electrical Power Pole With Galvanizing Surface Treatment

ได้รับการรับรอง
จีน Jiangsu milky way steel poles co.,ltd รับรอง
จีน Jiangsu milky way steel poles co.,ltd รับรอง
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

สนทนาออนไลน์ตอนนี้ฉัน

Power Line 11m 8KN Electrical Power Pole With Galvanizing Surface Treatment

จีน Power Line 11m 8KN Electrical Power Pole With Galvanizing Surface Treatment ผู้ผลิต
Power Line 11m 8KN Electrical Power Pole With Galvanizing Surface Treatment ผู้ผลิต Power Line 11m 8KN Electrical Power Pole With Galvanizing Surface Treatment ผู้ผลิต

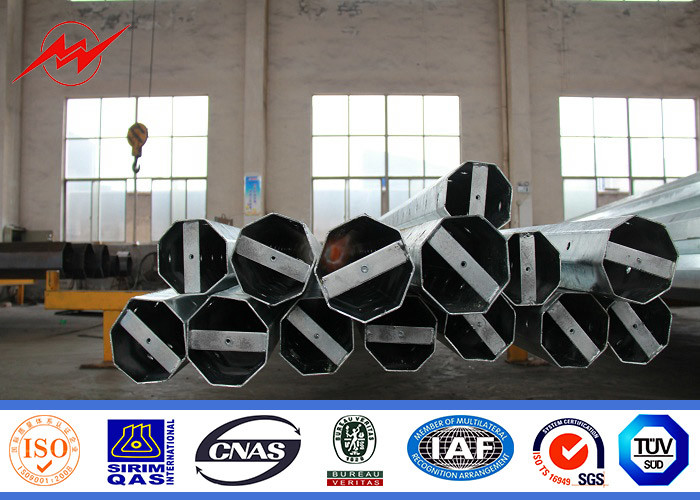

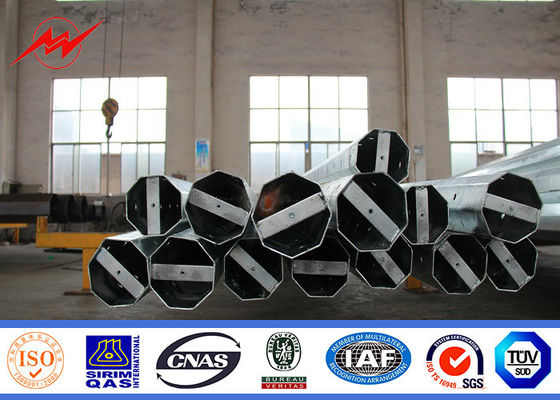

ภาพใหญ่ :  Power Line 11m 8KN Electrical Power Pole With Galvanizing Surface Treatment

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: Milky Way
ได้รับการรับรอง: ISO//BV
Model Number: 11m 8KN Electrical Power Pole With Galvanization Surface Treatment For Power Line

การชำระเงิน:

Minimum Order Quantity: one 40HQ
ราคา: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
ติดต่อ
รายละเอียดสินค้า
Type: straight pole, tensile pole, turn pole Surface Treatment: hot dip galvanized
Design Load in kg: 300~1000kg applicated to 50cm from the top pole Wind speed: 160km/h, 30m/s
Suit for: electricity distribution Welding standard: AWS D 1.1
แสงสูง:

metal power poles

,

electric utility poles

11m 8KN Electrical Power Pole With Galvanization Surface Treatment For Power Line

Specifications

Material:

high quality Q345 hot rolled steel

Mounting Height:

3-30m or according to the requirements of customers

Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that
folded into
required shape and welded longitudinally by automaticarc welding machine


Brackets:

Single or double brackets are in the shape and dimension as per customers requirement

Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per
customers requirement


Groung mounted:

The length buried underground as per customers requirement


Galvanizing:


Hot dip galvanization with thickness of 80-100µm average


Powder coating:

Pure polyester powder painting, color is optional






Raw Material


When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.


Plasma Cutting


Cuting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.

Power Line 11m 8KN Electrical Power Pole With Galvanizing Surface Treatment 0


Molding


Forming the cutted steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.


Welding


After molding, weld the steel plate together. Usually it is longitudinal welds. It adopts A.C.inverter control, with functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; The main frame and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.


The power pole of our company are made from quality sheets through bending,forming, automatic welding, hot dip galvanization and powder coating. We owned advanced production-line, it included Flatting machine, Steel plate shearer, bending machine,Auto-closed up machine, submerged arc welding machine and powder coating line, and our workmanship and quality control was achieved high opinion from our clients.



Features:
1) Designed or improved for various kinds of power pole.
2) Material: Hot rolled steel(Q235,Q345,Q450).
3) Appearance:Hot dip galvanized or spray plastic or others(up to customer’s request).
4)Packing: Woven bag, Plastic  bulble  paper or Black blanket or others.
5) Shape: Octagonal, Polygonal or Tapered round.
6) Length: up to customer' request.
7) Thickness of bending plate: 2.5mm - 20mm.
8) welding:automatic.
9)Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance.
