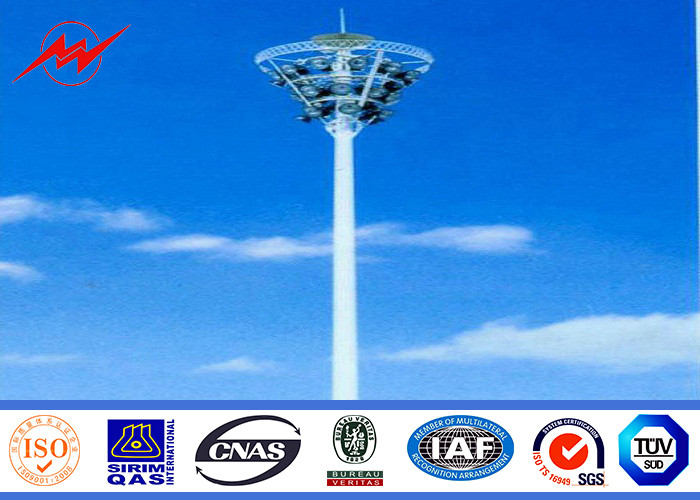

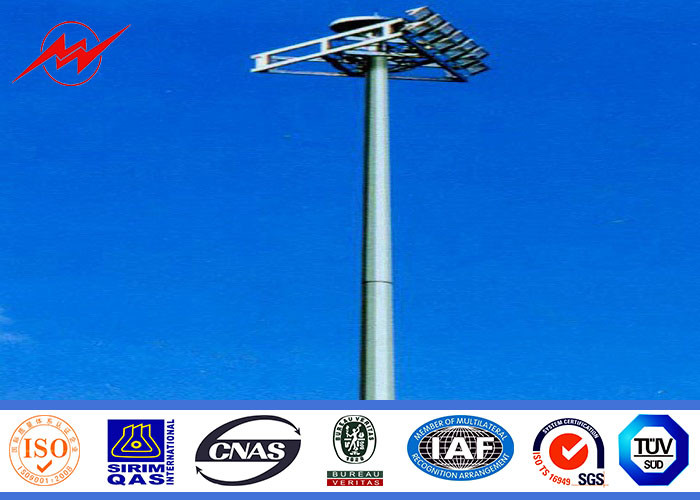

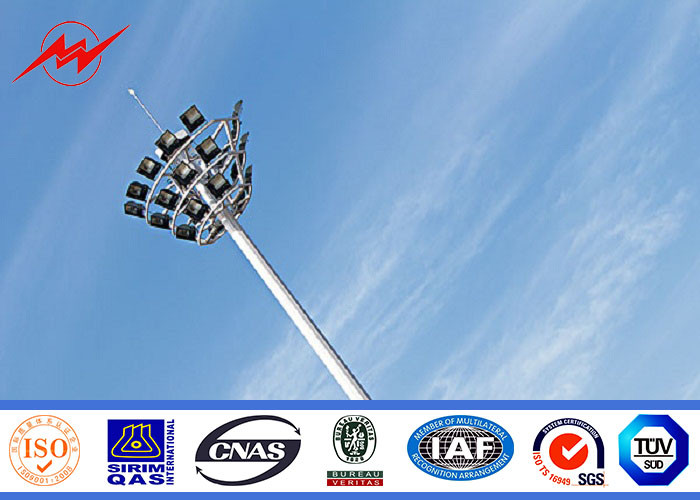

1000W Painting 80M High Mast Pole with Winch for Plaza Lighting
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped
vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Application:
|
Plaza High Mast Lighting pole Airport High Mast Lighting pole Highway High Mast Lighting pole Storage-yard High Mast Lighting pole Industrial-plant High Mast Lighting pole |
Park High Mast Lighting tower Dock High Mast Lighting tower Stadiums High Mast Lighting tower Overpass High Mast Lighting tower Toll-station High Mast Lighting tower |
Specifications:
|
Height |
20m-80m |
|
Max length per section |
14 m |
|
Thickness |
2.5mm~30 mm |
|
Shape |
Conical or polygongal tapered |
|
Material |
Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360 |
|
Lamp Power |
9 W~800 W (HPS/MH) |
|
Electroshock resistant protective grade |
Grade Ⅰ |
|
Finish |
hot dipgalvanization ,blasting,powder coating ,painting |
|
Galvanization standard |
ASTMA 123 / EN ISO 1461 |
|
Welding |
AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Lifting system |
Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut. |
|
Head frame |
Our headframe can be designed as per customer requirment to carry camera or industrial antenna. |
Lifting System:
A:Single Drum 150/300/600/1000KG
B:Double Drum 800/1000KG
C: Dual Hanger 150/300/600/800/1000KG
D:Double Hoist Main:600/1000KG Sub:150KG
