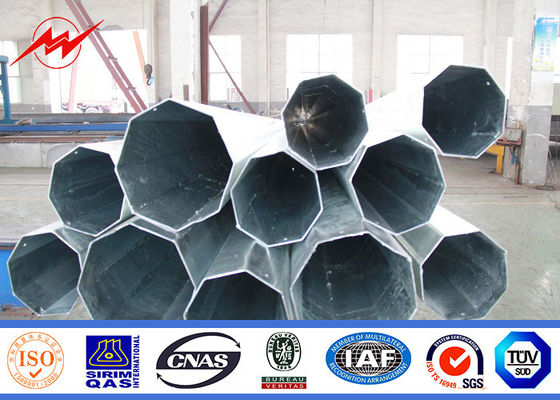

NGCP steel poles 80ft and 90ft electric pole Steel Utility Pole
Features:
|
Pole’s height |
All available |
|
Type |
Straight Pole ,Tensile Pole ,Turn Pole,etc |
|
Shape of pole |
Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc |
|
Crossarm |
Single or double crossarm, dimension as per customers’ requirement |
|
Material |
Steel materials conform to ASTM A36, Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65 |
|
Wall thickness |
≥2.5mm |
|
Once forming |
13m without joint |
|
Welding |
Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection. |
|
Joint |
Joint with insert mode, flange mode. |
|
Base plate mounted |
Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement. |
|
Galvanizing |
Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123. |
|
Voltage |
10KV~550KV |
|
Certificates |
ISO9001-2008 , AAA credit rating, etc |
|
Protection |
Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area |
Packing & shipping
We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.
Our Servises:
1.Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
