Product information
| IP Rating | IP66 |
| Distributed light source |
70-400W High pressure sodium lamp |
| Installation tube size | φ60MM |
| Installation height | 15-30M or as your request |
| STRUCTURAL FEATURE | |
| Lamp body and cover | Aluminium alloy die-casted |
| Lamp shade | toughened glass |
| Inner structure | Inner bulb-change,reflector is high pure anodized aluminium |
| Aluminium alloy die-casted agio fasten,integration design makes its apparatus parts in stalled inside the lamp,convenient for examin ation and maintenance. | |
| Applications | Street lighting, outdoor area, pathway, building exterior, parking area, security/perimeter, outdoor retail (e.g. automotive dealership), bridges and tunnels. |
| Approval | CE,EMC,LVD,ROHS,SASO |

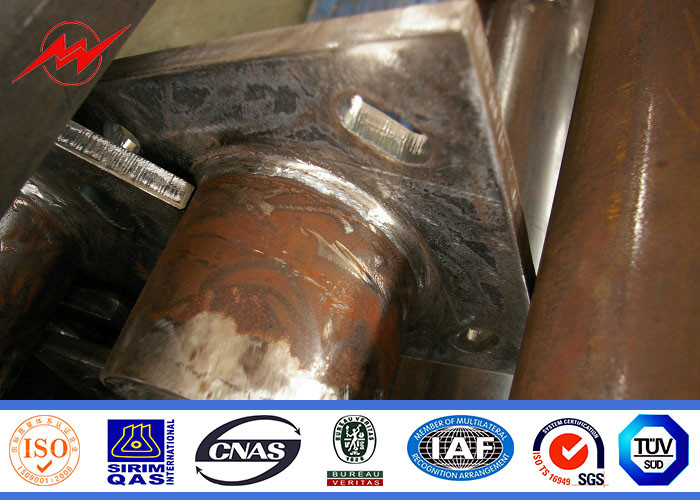

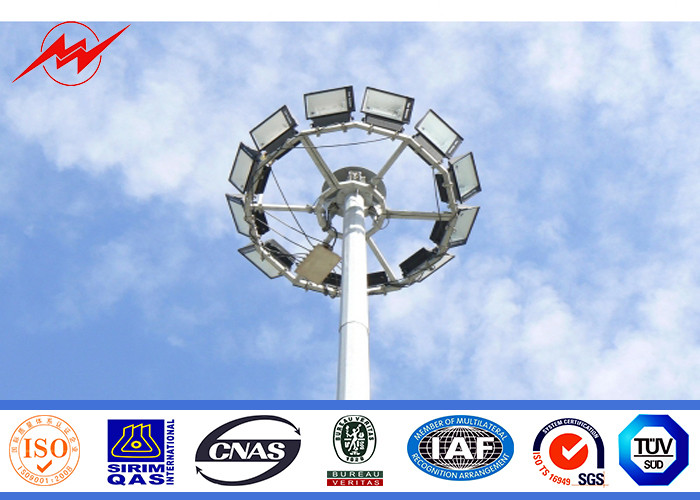

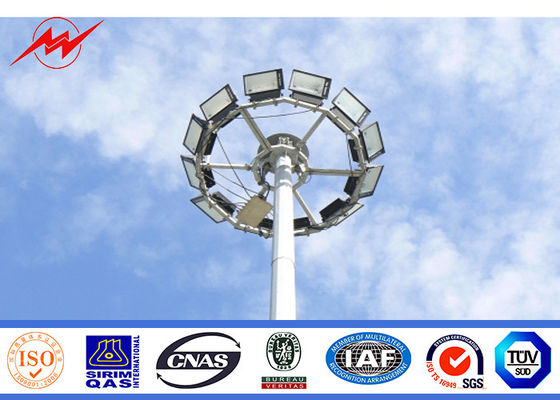

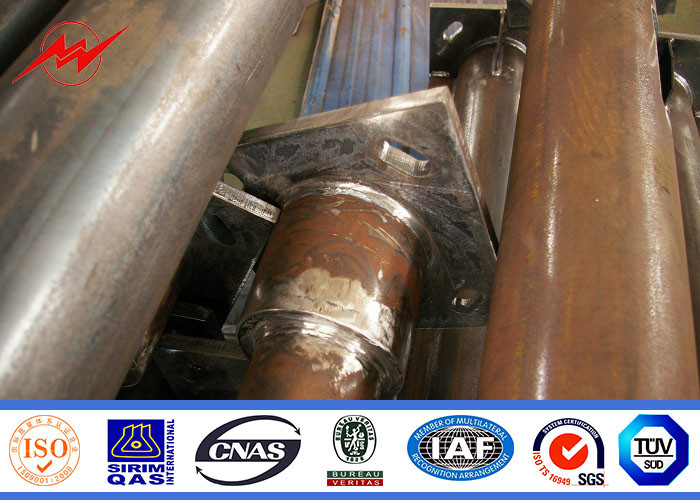

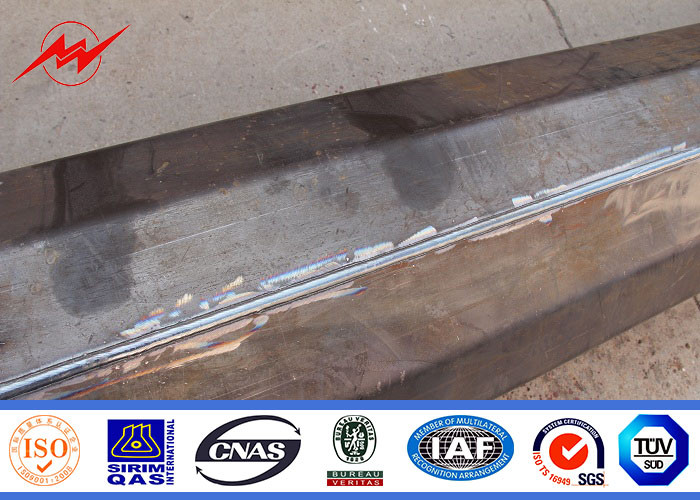

Specifications of High mast lighting pole:
1) Material: Hot DIP galvanized steel.
2) Type: Taper round or octagonal pole
Street lighting high mast poles
3) Material: Hot DIP galvanized steel
4) Type: Taper round or octagonal pole
5)Sizes and styles are variable per customers' requests
Features of 30/35/40m pole high mast:
1) Designed or improved for various kinds of high mast lighting poles.
2) Material: Hot rolled steel.
3) Fininshing:Hot dip steel to antirust or with Powder coating to beautify pole.
4Packing: Woven bag, Plastic bulble paper or Black blanket
5) Shape: Octagonal, Polygonal or Tapered round
6) Length: within 15 meters once forming without slip joint.
7) Thickness of bending plate: 1mm - 20mm
8) Anticorrosion methods: Hot dip galvanized,anti rust primer marine paint or powder coating.
9)Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
