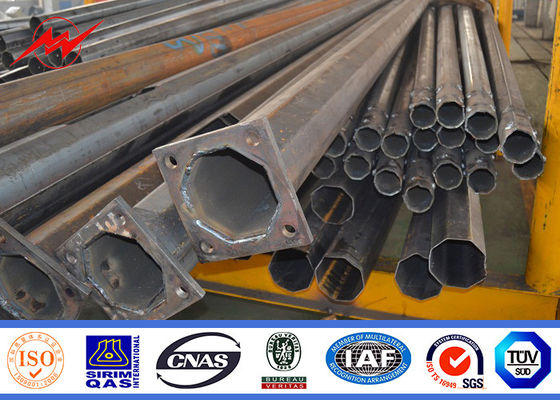

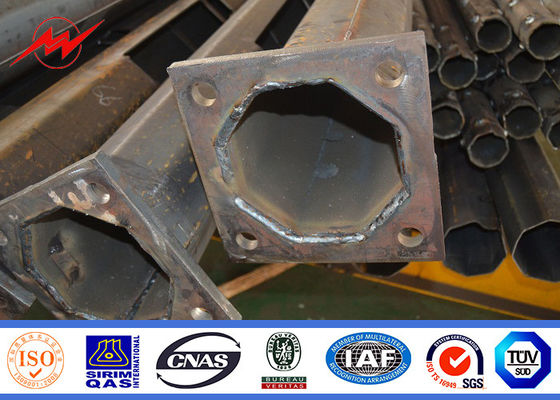

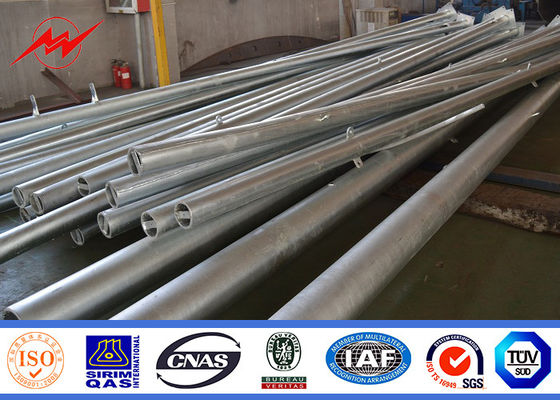

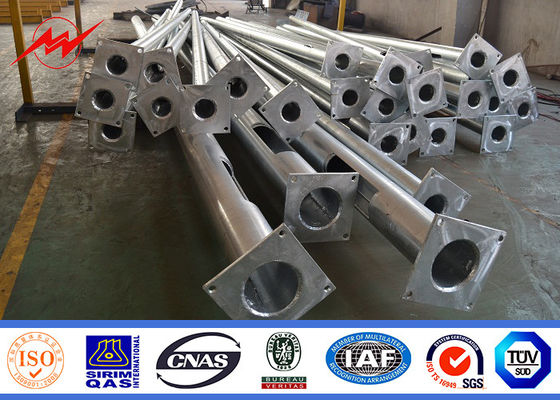

Single Arm 10m Q235 Street Light Poles with Hot Dip Galvanization
Specifications:
|
Type |
sreet light pole |
|
Shape |
conical, hexagonal and octagonal |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 SS400, SS490ST52 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
Octagonal Conical tapered column |
|
Length of per section |
Within 14m once forming without slip joint. |
|
high mast pole suit for |
city square,wharf,stadium |
|
Option of high mast pole |
Height from 20m to 35m |
|
Production Process of high mast pole |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Welding
Using automatic internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard.
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.
Company Introduction
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
