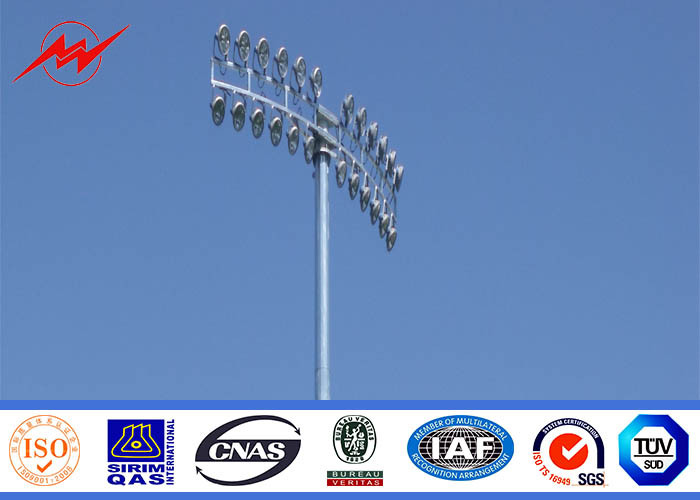

40m powder coated square High Mast Pole including all lamps for lighting
Specifications
|
Suit for |
Airport ,seaport, plaza, stadium, square, highway station, street way ,etc |
|
Shape |
Round, Multi-pyramidal, Column form, polygonal or conical |
|
Material |
Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 |
|
Torrance of dimension |
+- 2% |
|
Lighting Source |
400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m² |
|
Light plate |
Various figure of selection ,material with hot dip galvanization steel frame |
|
Lifting system |
Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Equipped e; ant ferromagnetism brake and break –proof device, manual operation applied under power cut |
|
Electric appliance control device |
Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Joint of Poles |
Insert mode, inner flange mode, face to face joint mode . |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
80 Km/Hour |
|

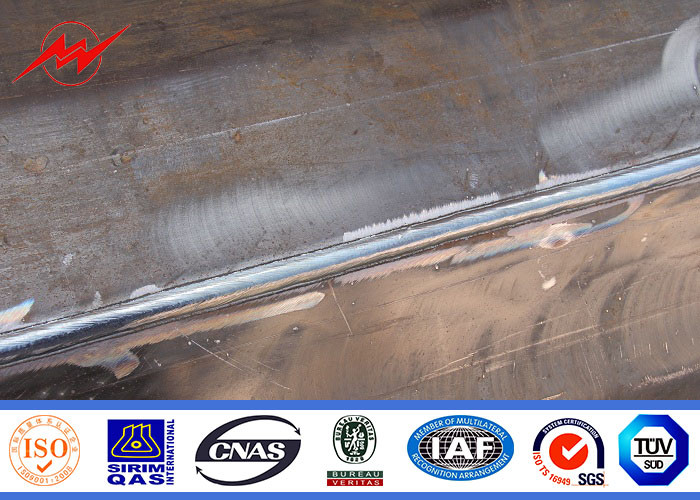

Welding |
We has past flaw testing. Internal and external double welding makes the welding in shape |
|

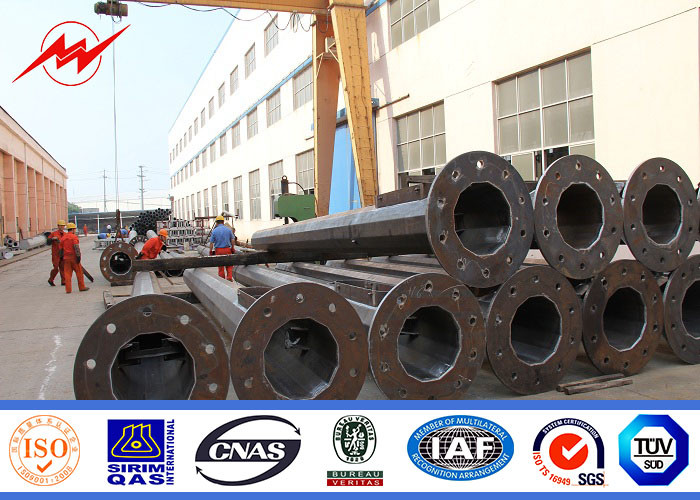

Production Process |
Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flangewelding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required |
Lifting system
Applications
|
Plaza High Mast Lighting pole Airport High Mast Lighting pole Highway High Mast Lighting pole Storage-yard High Mast Lighting pole Industrial-plant High Mast Lighting pole |
Park High Mast Lighting tower Dock High Mast Lighting tower Stadiums High Mast Lighting tower Overpass High Mast Lighting tower Toll-station High Mast Lighting tower |
