Factory:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

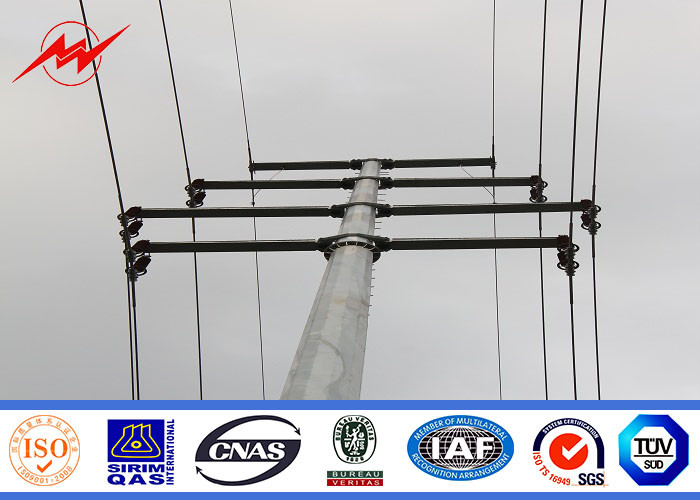

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.
Specification
|
Available height |
5-80m |
|
Electric pressure |
10kv--550kv |
|
Material |
Q345B/A572,minimum yield strength>=345MPA, |
|
Galvanized |
Hot dip galvanization,thickness is>=12um |
|
Delivery lead time |
30 days after receiving 30% deposit |
|
Lifetime |
Minimum 25 years |
|
Structure |
Overlap connection/Flange connection |
|
Galvanizing standard |
ASTM/A123 |
|
Manufacturing and workmanship |
BS449 or AISC |
|
Welding standard |
AWS D1.1 |

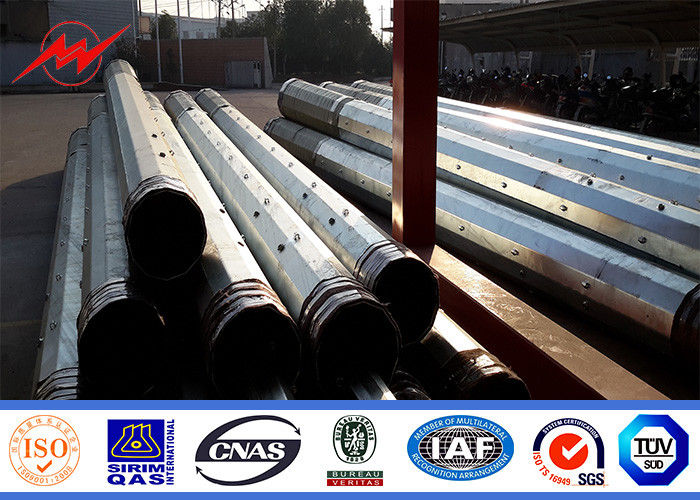

Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.
Material
All of our material are purchased from famous mill factory to assure the quality
