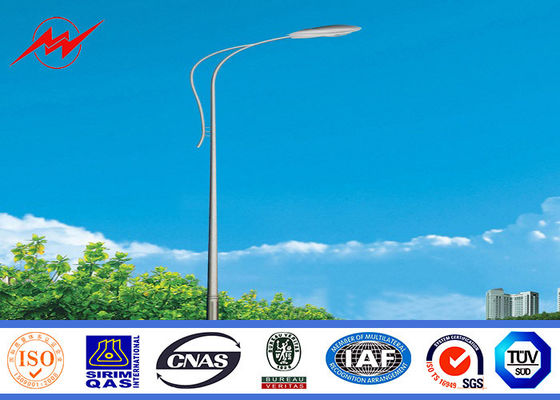

6mm 3mm thickness single bracket Galvanized Steel Pole for street light
Quick Details for Galvanized Steel Pole
|
Item No |
6mm 3mm thickness single bracket Galvanized Steel Pole for street light |
|
Height |
6M |
|
Thickness |
Econmic thickness is 3mm wall thickness,or customized design are available |
|
Shape |
According to customer's design or our standard shape such as Conical,round,octagonal,dodecagon |
|
Material |
Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 Q460, minimum yield strength>=460n/mm2 |
|
Wind Design |
32m/s,160km/h |
|
Suit for |
Highway,state highway,garden |
Applications
The Avenue range of tapered round and tapered octagonal poles are the standard variety of poles for Street Lighting with both single and double outreaches.
The Avenue range is ideally suited for residential subdivisions, commercial developments, recreational pathways and parks.
Pole Flange Type
Flange Mounted Details
More information,please contact with us.
MATERIAL
Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.
Main Material is Q235,Q345,Gr65 or as specified in the customer specification.
FINISHING
Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.
No welding, cutting or drilling is done after galvanizing.
The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.
SHAPE
Anchor Bolts
• Available in 24" x 3/4", 36" x 1", 48" x 1 1/4" and 54" x 1 1/2"
• Hot dip galvanized
• Supplied as optional product
• Standard re-Bar conforming to C.S.A. Standard CAN/CSA - G30.18-M Grade 400 for
24" X 3/4". Higher grades for larger sizes.
• Supplied with hexagon nut and washer
Nut & Bolt Cover
• Supplied with pole. Designed to fit 1", 1 1/4" and 1 1/2" bolts.
• High strength polyurethane
• Available in colours
Handhole
•Pole is supplied with 4" x 7" handhole, grounding stud and handhole cover
The standard tenon size is 2 3/8" O.D. by 7" long.
Any designs not shown in this catalogue can be produced by Nova Pole International
and inquiries should be communicated to company representatives.
Approval drawings are available on request.
All measurements shown here are imperial measure (inches, square inches and feet)
unless otherwise noted.
Pole Type
Post top
Hockey Stick
Single Bracket
Dual Bracket
Company:
Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
