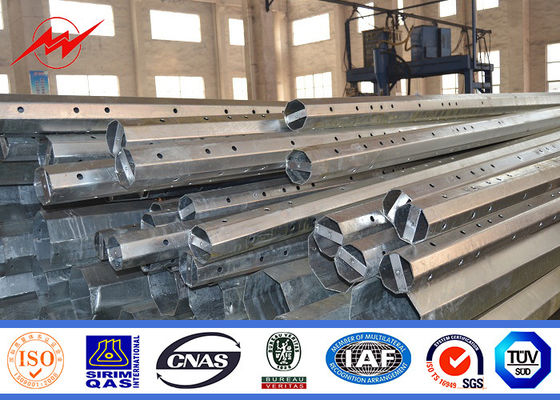

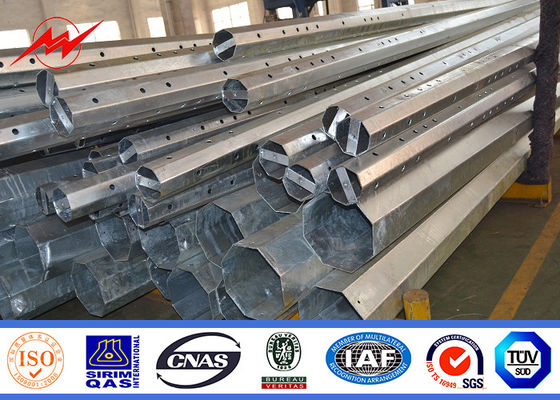

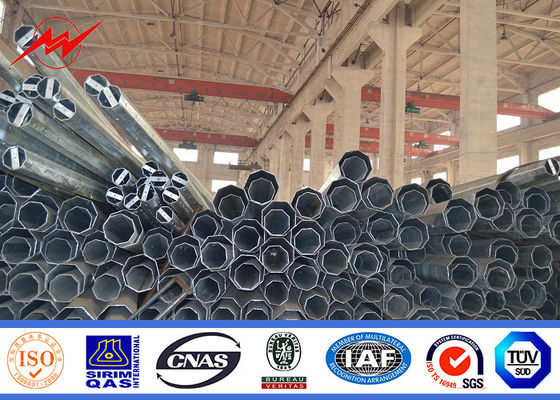

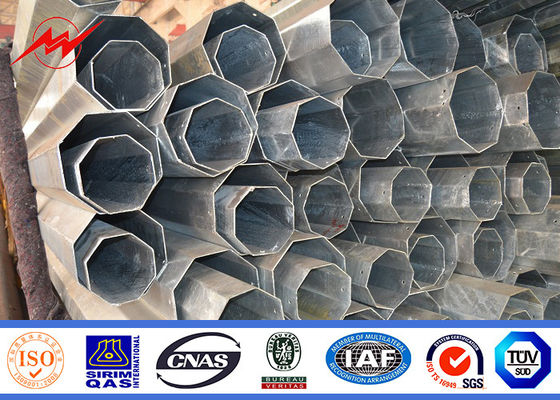

69KV 11.8M Galvanized Steel Electric Power Pole 3mm for Power Transmission
Specification:
|
Height |
From 9 meter to 100 meter |
|
Suit for |
Electric Power Transmission and Distribution |
|
Shape |
Polygonal or Conical |
|
Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
|
Power Capacity |
10kV to 220kV |
|
Tolerance of the dimension |
According to client’s requirement. |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
|
Joint of Poles |
Slip joint, flanged connected |
|
Standard |
ISO 9001:2008 |
|
Length of per section |
Within 14 meter once forming |
|
Welding Standard |
AWS (American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 30mm |
|
Production Process |
Raw material test → Cutting →bending →Welding (longitudinal )→ Dimension verify → Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
|
Packages |
Packing with plastic paper or according to client’s request. |
Packages:
Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.
Company Instruction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
