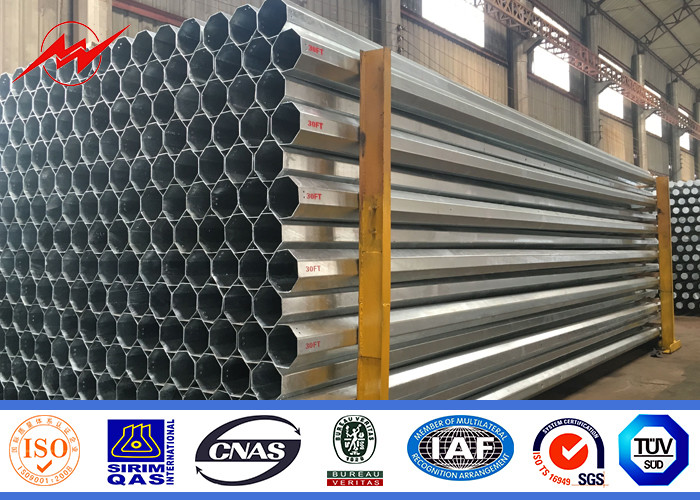

15m 1000DAN Steel Utility Pole GR505 Material For Congo Electric Distribution
Specifications:
|
Suit for |
Power Transmission |
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
|
Power |
10 KV ~550 KV |
|
Safety Factor |
Safety factor for conducting wine : 8 |
|
Wind Speed |
33 m /s |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
|
Welding |
We has past flaw testing.Internal and external double welding makes |
|
Production Process |
Row material test → Cutting →Molding or bending → |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , |
The followed design is based on ASTMA 572 Gr 65 material,with octagonal cross section shape,while the safety factor is 1.8.If you have other requirement on load,height,material and cross section shape,pls contact us.
Description:
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
Pole Dimension
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
