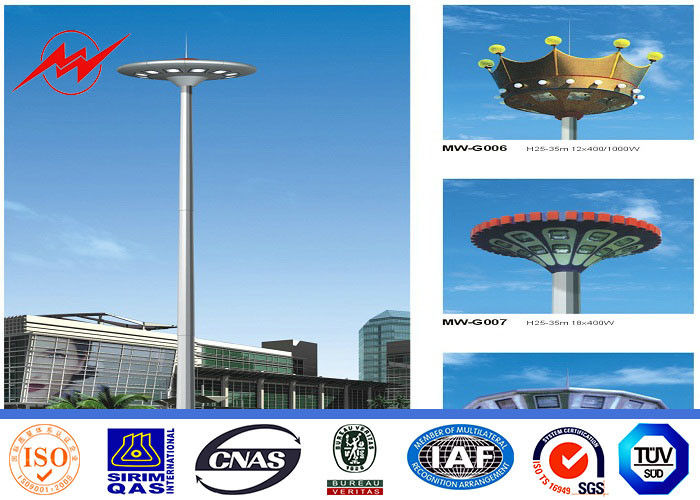

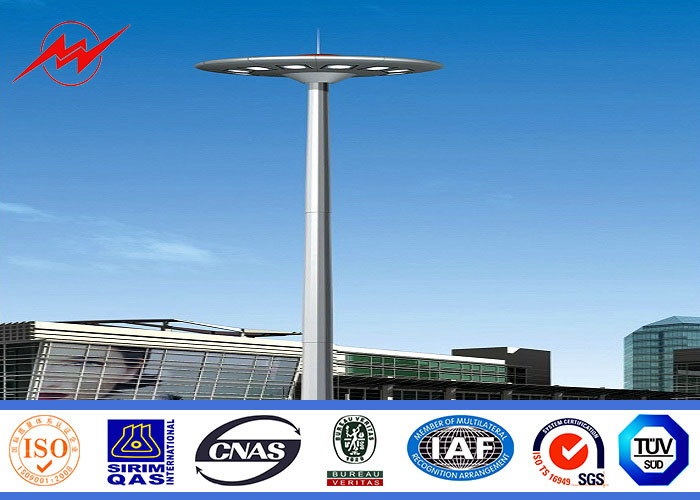

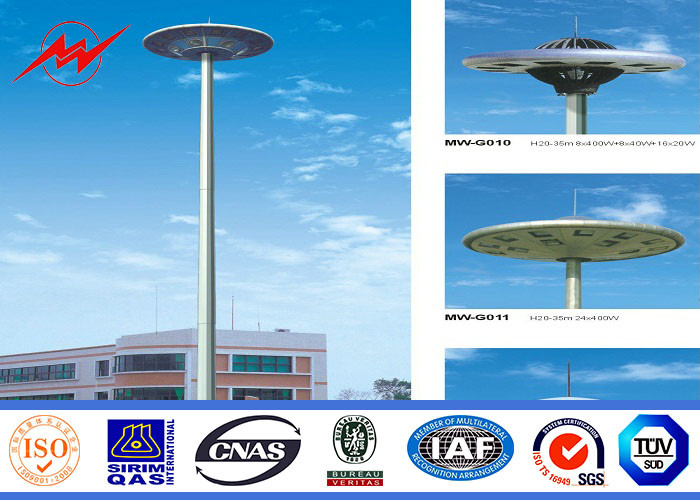

Hot Dip Galvanization 75M Painting High Mast Pole with Lifting System

ภาพใหญ่ : Hot Dip Galvanization 75M Painting High Mast Pole with Lifting System

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	MilkyWay
ได้รับการรับรอง:	ISO9001/BV/
Model Number:	High Mast Pole

การชำระเงิน:

Minimum Order Quantity:	1 pcs
ราคา:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

ติดต่อ

รายละเอียดสินค้า

Product Name:	High Mast Pole	Application:	Seaport lighting
Standard:	ISO	Gavanization standard:	ASTM A 123
Welding standard:	AWS D 1.1	Lamp power:	20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz
Wind Speed:	160 Km/Hour
แสงสูง:	high mast lighting pole , Park Light pole

Hot Dip Galvanization 75M Painting High Mast Pole with Lifting System

Description:

Our Floodlighting pole can be appied to the lighting of airport, sea port, plaza, stadium. And we have different headframe design for the the mounting for different quantity of floodlight
Designed and manufacutred for durability, corrosion resistance and visual appeal.

Specifications:

Height	From 20 m to 80 m
Suit for	Airport ,seaport,plaza,stadium ,square,highway, street way etc
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Torlance of the dimenstion	+- 2%
Power	400 W- 5000 W
Light panel	Various figure of slection ,material with hot dip galvanization steel frame ,stainless steel ,special aluminum plate
Light Extension	Up to 30 000 m2
Lamp &Luminaire	Projector generally to be applied with safety grade IP65 Luminaire with high pressure sodium lamp of long lift and high lighting efficiency ,or metal halide lamp with high CRI
Lifting system	Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Euqiped e;ectromagnetism brake and break –proof device,manual opeation applied under power cut
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Style	Aerial clog could be installed complied with clients desire to carry camera or industrial antenna

Hot Dip Galvanization 75M Painting High Mast Pole with Lifting System 0

Raising-and-Lowering System Types
A:Single Drum 150/300/600/1000KG
B:Double Drum 800/1000KG
C: Dual Hanger 150/300/600/800/1000KG
D:Double Hoist Main:600/1000KG Sub:150KG

Hot Dip Galvanization 75M Painting High Mast Pole with Lifting System 1
