|Product Name:||Mono Pole Tower||Application:||Communication Distrubution|
|Section:||Three sections||Height:||15m to 65m|
|Welding standard:||AWS D 1.1 /BS EN 1011-1,BS EN 1011-2||Galvanization standard:||ASTM A 123|
Conical 90ft Mono Pole Tower Galvanized surface for communication tower
Small tower footprint and foundation
Fast and easy to erect
Versatile for different loading applications
|Series MP230||15-30 m||Telecommunication - designed for one operator|
|Series MP300||18-24 m||Telecommunication - designed for two operators|
|Series MP440||15-30 m||Telecommunication - designed for three operators|
|Series MP1500||30-48 m||Telecommunication - designed for four operators or 15 m2 of windages for antennas|
Tubular Steel Construction
Monopoles are fabricated from domestic steel, meeting or exceeding the latest EIA criteria.
Hot Dip Galvanization
Zinc coating on all hardware and components meet EIA and ASTM-A123 standards.
Western's monopoles are designed to withstand winds of up to 105 mph. Monopoles requiring higher or lower wind or ice loads are custom engineered.
Meets heavy duty industrial applications and comes with a five-year warranty on labor and materials.
Climbing ladder anticlimb devices available. Lockable access port prevents tampering. Coax, electrical power, and fiber optics are enclosed inside the structure preventing damage due to vandalism.
Ease of Maintenance
Platforms are designed for ease of access to cameras, microwave equipment, and electronics. Climbing ladder is enclosed in cage or can be equipped with an optional safety climb device.
Monopoles can be used in applications such as rail yard and intermodal facility security and in high-security areas such as prisons or defense installations. Monopoles have been used by the U.S. Border Patrol for border security.
Various Sizes, Heights, & Capacities
Please contact us with the tower requirements, and we will provide a proposal for each specific tower need.
Monopole Towers are used for a variety of communication applications and are ideal for use when zoning is difficult. They are the least intrusive and easiest communication towers to erect making them one of the most popular tower types in the wireless communication industry. Monopoles can also be designed as concealment poles: pine poles, flag poles, palm poles and other stealth towers. Many uses include cellular monopoles, wireless internet monopoles, homeland security monopoles, two-way monopoles, and wind tower monopoles
Recommended Use for Flange Monopole Towers:
Video Surveillance Equipment
Traffic Control Cameras
Crime Prevention Video Surveillance
Mono Pole Tower Design

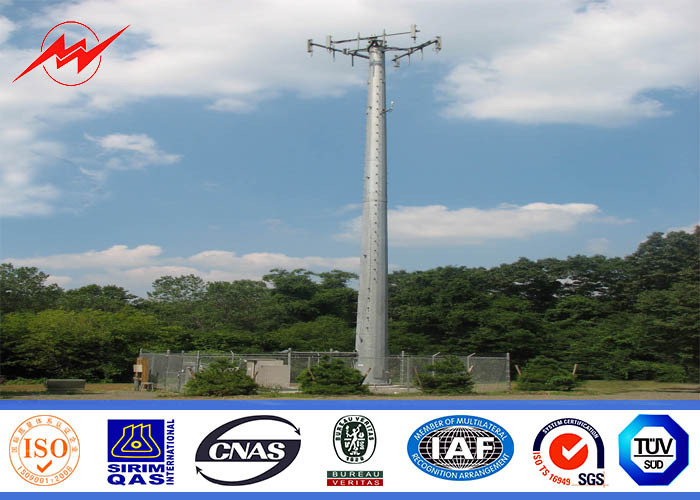

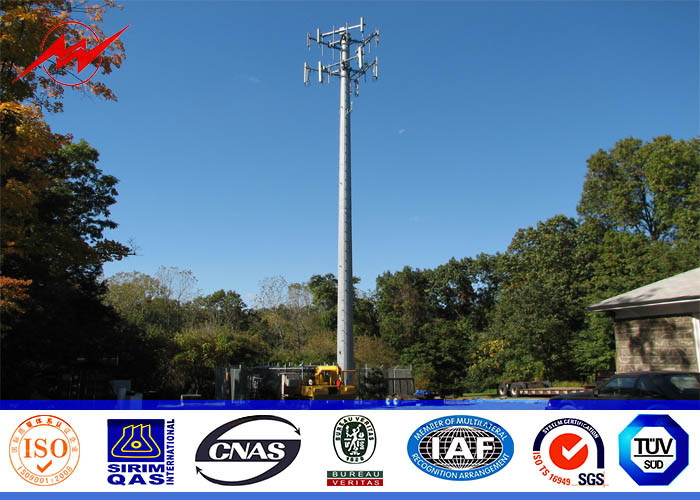

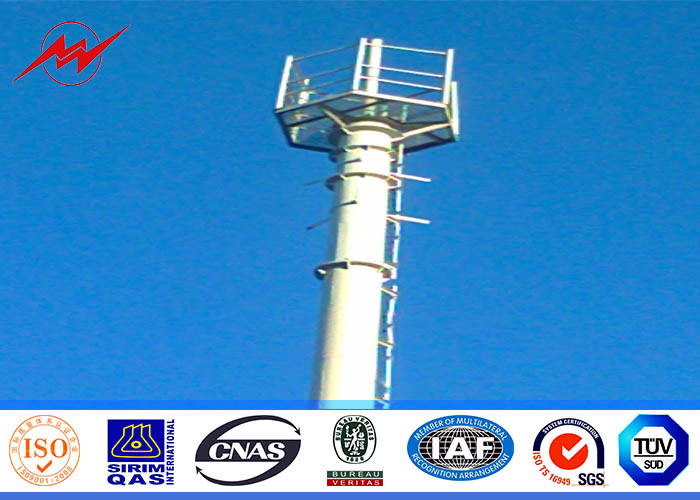

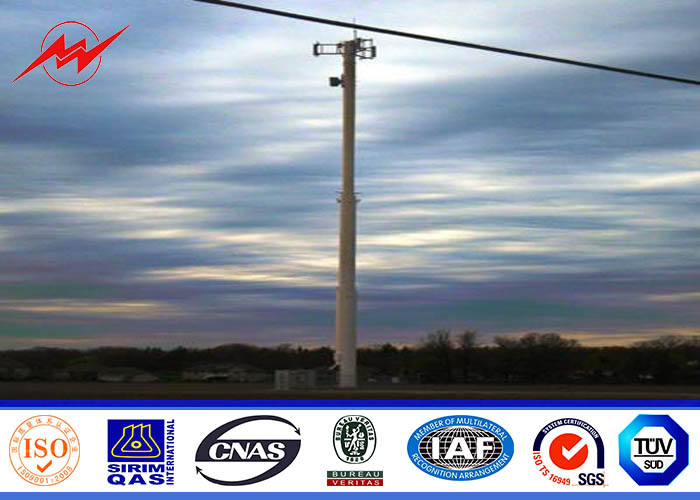

Installation On Site
