S235 Steel Material 3mm Thick Street Lamp Pole Street Light Pole With Drawing

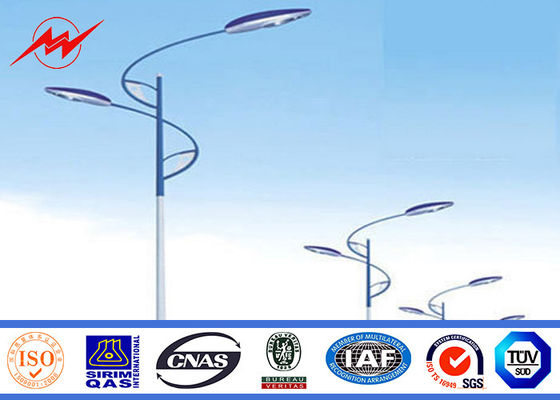

ภาพใหญ่ : S235 Steel Material 3mm Thick Street Lamp Pole Street Light Pole With Drawing

รายละเอียดสินค้า:

Place of Origin:	China,Jiangsu
ชื่อแบรนด์:	MilkyWay
ได้รับการรับรอง:	ISO9001/BV/
Model Number:	Street Light Poles

การชำระเงิน:

Minimum Order Quantity:	1 pcs
ราคา:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

ติดต่อ

รายละเอียดสินค้า

tolerance:	+/-2%	Product Name:	S235 steel material 5m and 11.8m 3mm thick Street Light Poles With Drawing
Pole finished:	galvanized high mast pole	Payment Terms::	T/T ,L/C
Supply Ability::	2000pcs per week	safty Facor:	1.8
Thickness:	3mm 4mm Customization Available
แสงสูง:	street lighting poles , street lamp pole

S235 steel material 5m and 11.8m 3mm thick Street Light Poles With Drawing

Specification:

name	8-12m Customized School / Villas Steel High Mast Pole With Drawing 1.0 Safty Facor
Type	street light pole
Shape	conical, hexagonal and octagonal
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
high mast pole suit for	city square,wharf,stadium
Option of high mast pole	Height from 20m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

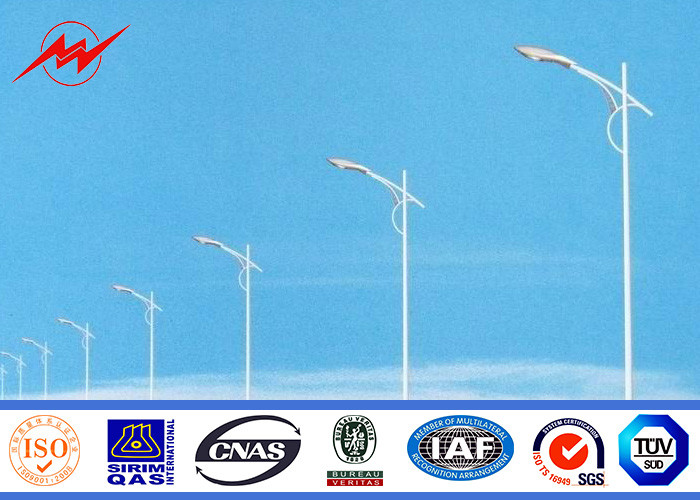

S235 Steel Material 3mm Thick Street Lamp Pole Street Light Pole With Drawing 0

·Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2

(Other Material is Available on Request)

·Hot Dip Galvanized (≥86um)

·Any Color Polyester Powder Coated (≥100 um)

·Taper Conical , Octagonal, Polygon Section

·With demounted bracket design,easy loaded,install,and maintenance

·Theftproof slide lock

·Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, High Mast,highmast light poles,

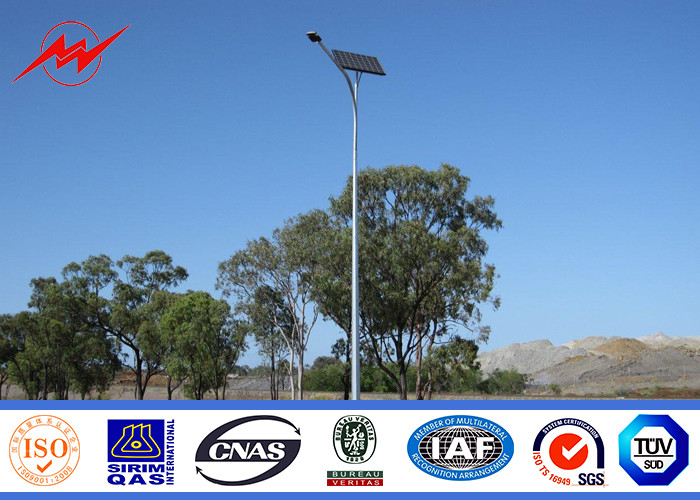

S235 Steel Material 3mm Thick Street Lamp Pole Street Light Pole With Drawing 1

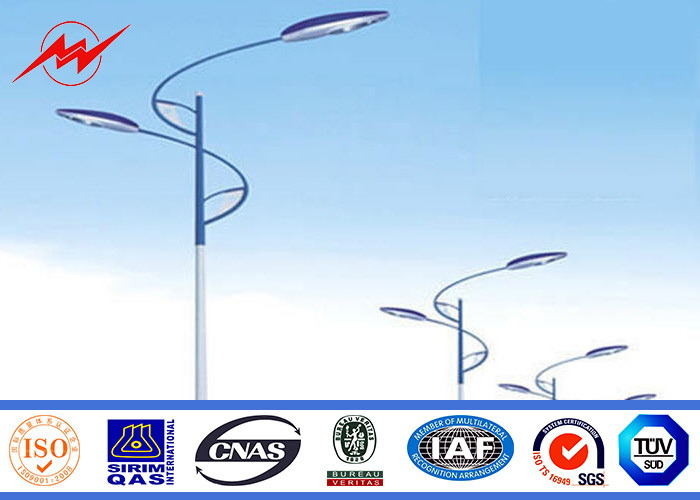

S235 Steel Material 3mm Thick Street Lamp Pole Street Light Pole With Drawing 2

1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.

2. What will be the delivery time and what will be the mode of payment?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.
50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction,Letter of credit,Paypal,Western Union.

3. Shipment will be over sea or by air?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation,
and oversea for led lights,and can be customized by your requirements.

4. Could you please send me the sample for the same. So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.

5. Will there be any contract for this business or trade?
Yes, there is a normal contract before the order is placed.
