Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line

ได้รับการรับรอง
จีน Jiangsu milky way steel poles co.,ltd รับรอง
จีน Jiangsu milky way steel poles co.,ltd รับรอง
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

สนทนาออนไลน์ตอนนี้ฉัน

Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line

จีน Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line ผู้ผลิต
Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line ผู้ผลิต Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line ผู้ผลิต Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line ผู้ผลิต Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line ผู้ผลิต

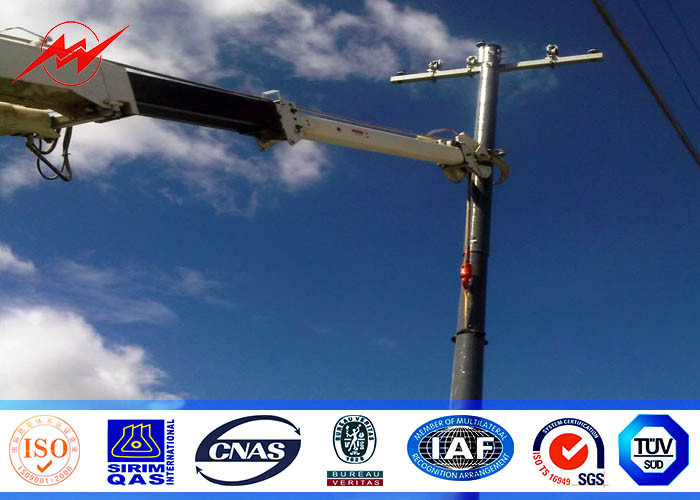

ภาพใหญ่ :  Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line

รายละเอียดสินค้า:

Place of Origin: Yixing,Jiangsu,China
ชื่อแบรนด์: Milky Way
ได้รับการรับรอง: ISO,BV
Model Number: Steel Utility Pole

การชำระเงิน:

Minimum Order Quantity: 1 Poles
ราคา: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
ติดต่อ
รายละเอียดสินค้า
Transmisson Line: 69kv Usage: Power Distribution Transmission Line
Minimum yield strength: 460 mpa Height: 30FT
Appearance: Tubular,triangular,angular,lattice Wind speed: 35m/s
Galvanization standard: ASTM A 123
แสงสูง:

metal utility poles

,

electric telescoping pole

Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line



Quick Infromation



Milky Way Pre-Engineered steel utility poles offer a light duty solution to satisfy utilities desiring an alternative to wood poles. Milky Way’s line of Pre-Engineered poles are lighter than typical

wooden and concrete poles and provide easy installation and low maintenance. Milky Way offers Pre-Engineered poles for either direct embed or flange installations. The poles come standard with a hot-dip galvanized coating, but can also be painted or fabricated with weathering steel.





Technical Data Sheet



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS



Product Process



• 2500t Brake Press (capacity to press poles with wall thicknesses up to 30mm)

• Automatic Plasma cutting, Flame cutting, Seam welding and Flange welding machines

• Straightening machines

• CNC Punching machines

• Capacity to produce poles with diameters ranging from 60mm to greater than 3000mm

• Capacity to produce poles in heights from 3m to greater than 75m

• Capable of producing poles for any requirement from small distribution poles to large transmission poles



Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line 0



Some of the advantages of steel poles over wood poles are as follows:



Lighter - steel poles are significantly lighter than wood poles

More consistent - steel poles do not vary in dimension

Longer service life – steel poles are not vulnerable to insects, woodpeckers or other wildlife

Cost competitive – steel poles are becoming much more affordable as an alternative to wood

Recyclable – steel poles are recyclable after their service life

Different appearances - steel poles are available painted, with a traditional galvanized finish, or in weathering steel

With the advantages of steel, utility companies continue to rely on steel distribution poles in place of wood.



The information to inquiry or purchase



-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.



More Pictures:

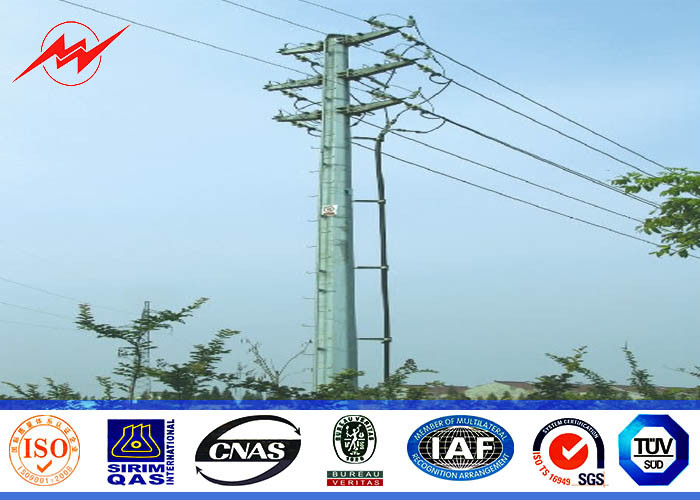

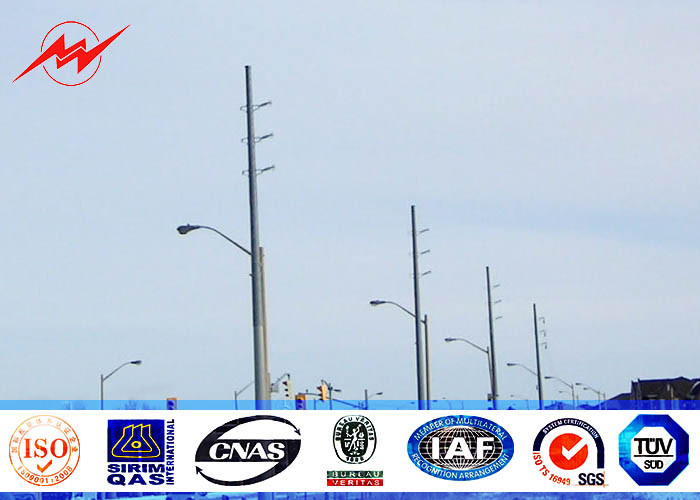

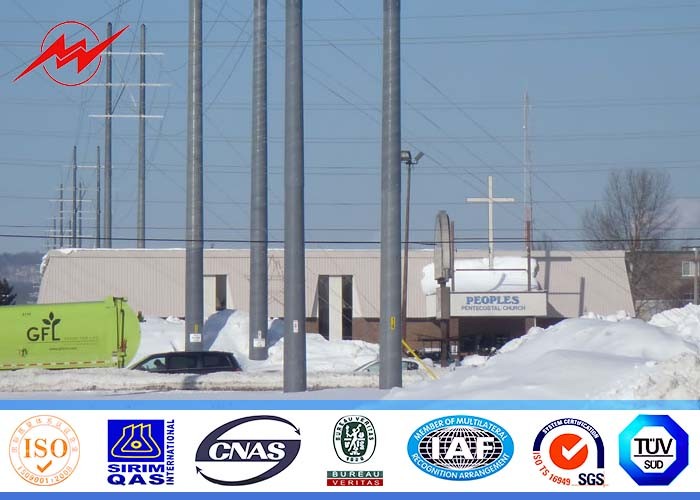

Round 30FT 69kv Steel utility Pole for Power Distribution Transmission Line 1





Company Introduction:



Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
