Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm

จีน Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm ผู้ผลิต
Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm ผู้ผลิต Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm ผู้ผลิต Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm ผู้ผลิต Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm ผู้ผลิต

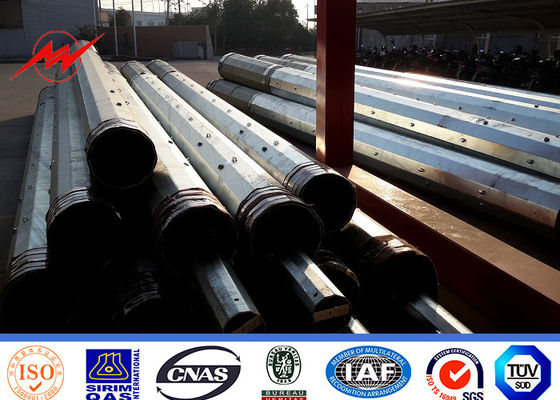

ภาพใหญ่ :  Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: MilkyWay
ได้รับการรับรอง: ISO9001/BV/
Model Number: Galvanized Steel Power Pole

การชำระเงิน:

Minimum Order Quantity: 1 pcs
ราคา: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
ติดต่อ
รายละเอียดสินค้า
Product Name: Galvanized Steel Power Pole Application: Power Line
Design: Customized Surface treatment: hot dip galvanization powder coating
Power Capacity: 10kV to 220kV Welding Standard: AWS (American Welding Society ) D 1.1
Material: Q345
แสงสูง:

galvanised steel poles

,

power line pole

 Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm





 Specifications:



Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per

customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





The information to inquiry or purchase
 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.




 Material

 Usually   Q345B/A572,minimum yield strength>=345n/mm2
 Q235B/A36,minimum yield strength>=235n/mm2
 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

 Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm 0



 Production Process

 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

 Powder Coating 30FT Philippine Galvanized Steel Power Pole with Cross Arm 1



 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
