Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm

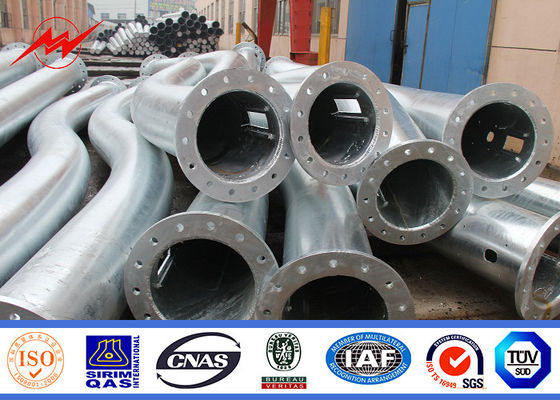

ภาพใหญ่ : Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	MilkyWay
ได้รับการรับรอง:	ISO9001/BV/
Model Number:	Galvanized Steel Pole

การชำระเงิน:

Minimum Order Quantity:	1 pcs
ราคา:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

ติดต่อ

รายละเอียดสินค้า

Product Name:	Galvanized Steel Pole	Wind Speed:	30m/s
Welding standard:	AWS D 1.1 /BS EN 1011-1,BS EN 1011-2	Design:	Customized
Material:	Q345	Lift time:	50 years
Warranty:	15 years
แสงสูง:	steel transmission poles , power line pole

Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm

Description:
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.

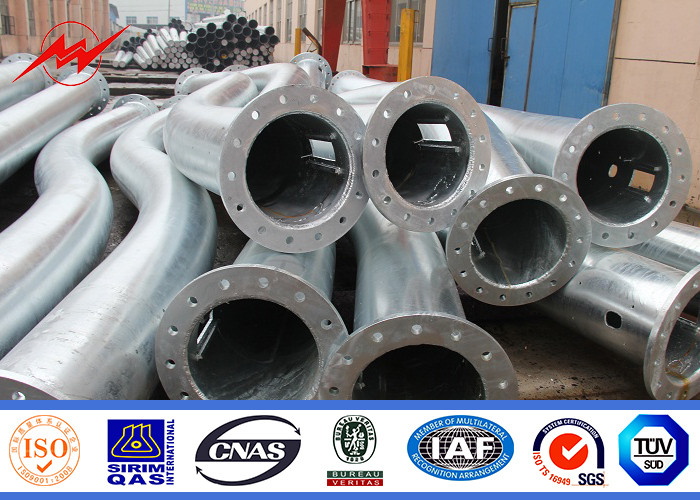

Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm 0

Specifications:

Height	From 6 m to 15 m
Suit for	Airport ,seaport,plaza,stadium ,square,highway, street way etc
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Lamp power	20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz
Torlance of the dimenstion	+- 2%
Optical assembly of lighting fixture	IP 65
Electroshock resistant protective grade	Grade Ⅰ
The casing anti-corrosion performance	Class Ⅱ
Working atmosphere of lighting fixture	-35 ℃~+45 ℃
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Style	Size and styles are veriable as per customer request

Packages:Standard seaworthy

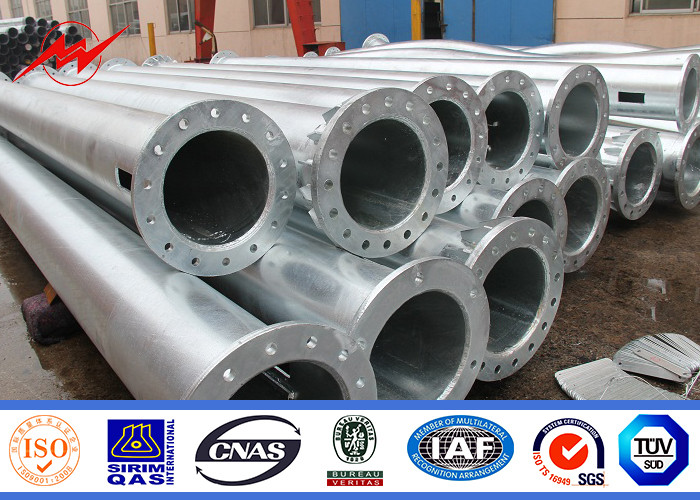

Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm 1

Application:
Highway Seamless Steel Pipe Park Seamless Steel Pipe
Main Roads Seamless Steel Pipe Dock Seamless Steel Pipe
Secondary Roads Seamless Steel Pipe Stadium Seamless Steel Pipe
Storage-yar Seamless Steel Pipe Overpass Seamless Steel Pipe
Industrial-Plant Seamless Steel Toll-Station Seamless Steel Pipe

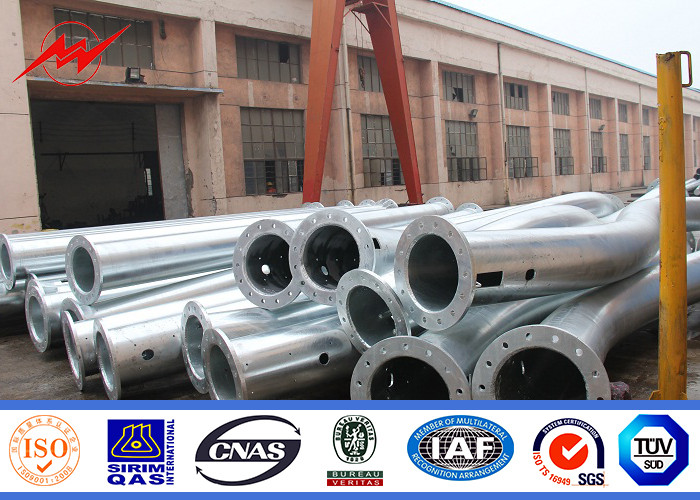

Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm 2
