เราให้ความสำคัญกับคุณภาพสูง
รายละเอียดสินค้า:
การชำระเงิน:
|
| Product Name: | Galvanized Steel Power Pole | Shape: | Polygonal or Round |
|---|---|---|---|
| Material: | Gr50 Gr65 | Galvanizing: | ASTM A123 |
| Life time: | 50 years | Welding Standard: | AWS D 1.1 |
| แสงสูง: | galvanized light pole,power distribution poles |
||

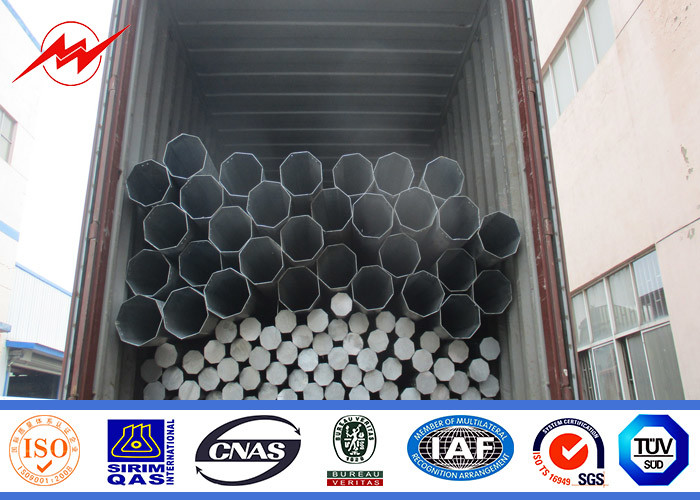

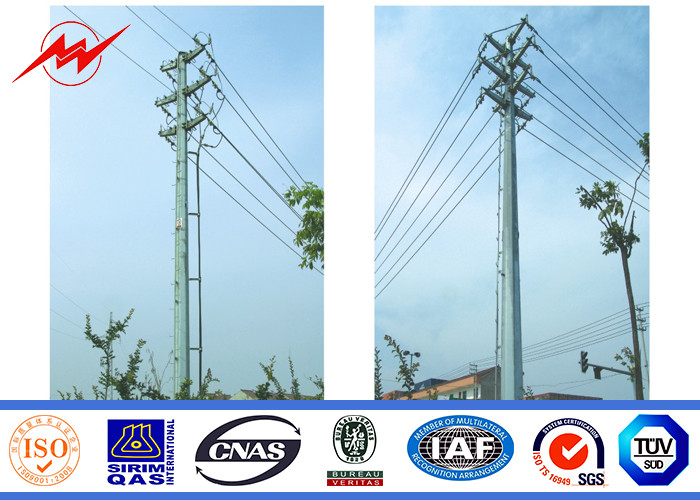

Galvanized Cameroon 9m-13m Electric Steel Power pole with Bitumen Gr50
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Specifications:
| Electric Pole Specification for Cameroon Market | ||||||
| Height | Load(Dan) | Top Diameter(mm) | Bottom Diameter(mm) | Pole Thickness(mm) | Section | Pole Shape |
| 9M | 200 | 120 | 210 | 3 | 1 | Octagonal |
| 9M | 325 | 130 | 270 | 3 | 1 | |
| 9M | 350 | 120 | 240 | 3 | 1 | |
| 11.8M | 800 | 140 | 332 | 4.5 | 1 | |
| 11.8M | 1000 | 175 | 370 | 4.5 | 1 | |
| 12M | 800 | 140 | 332 | 4.5 | 2 | |
| 12M | 1000 | 175 | 370 | 4.5 | 2 | |
| 13M | 400 | 150 | 370 | 3 | 2 | |
| 13M | 800 | 200 | 475 | 3.5 | 2 | |
| 13M | 1250 | 240 | 590 | 3.5 | 2 | |
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
Technical information-Cross Arm
Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
