Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole

ได้รับการรับรอง
อย่างดี ขั้วไฟฟ้าไฟฟ้า สำหรับการขาย
อย่างดี ขั้วไฟฟ้าไฟฟ้า สำหรับการขาย
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

สนทนาออนไลน์ตอนนี้ฉัน

Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole

ประเทศจีน Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole ผู้ผลิต
Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole ผู้ผลิต Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole ผู้ผลิต Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole ผู้ผลิต Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole ผู้ผลิต

ภาพใหญ่ :  Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: Milky Way
ได้รับการรับรอง: SGS/BV/ISO
Model Number: Electrical Power Transmission Poles For Distribution Line Project

การชำระเงิน:

Minimum Order Quantity: one 40 HQ
ราคา: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
รายละเอียดสินค้า
Power: 10kv~550kv Type: straight pole, tensile pole, turn pole
Thickness: 1mm to 30mm Wind speed: 160km/h, 30m/s
tolerance: +/-2% Design Load in Kg: 300~ 1000 Kg applicated to 50cm from the to pole

Electrical Power Transmission Poles For Distribution Line Project





Specification



Material:

high quality Q345 hot rolled steel

Mounting Height:

3-30m or according to the requirements of customers

Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine



Brackets:

Single or double brackets are in the shape and dimension as per customers requirement

Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement



Groung mounted:

The length buried underground as per customers requirement



Galvanizing:



Hot dip galvanization with thickness of 80-100µm average



Powder coating:

Pure polyester powder painting, color is optional



Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole





Production Process



When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.

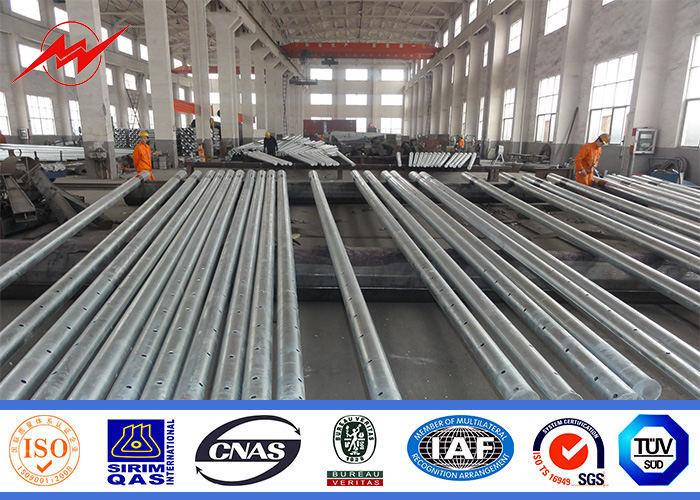

Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.



The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.



Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole



Features



1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.

Electrical Power Transmission Poles For Distribution Line Project , Steel Power Pole
