Class 1 Electrical Power Pole 5mm Thickness Galvanization For 69kv Transmission Pole

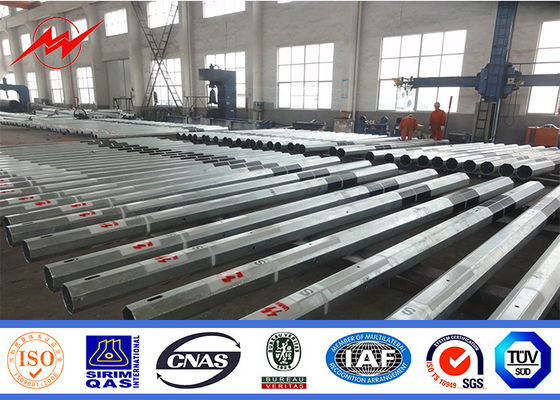

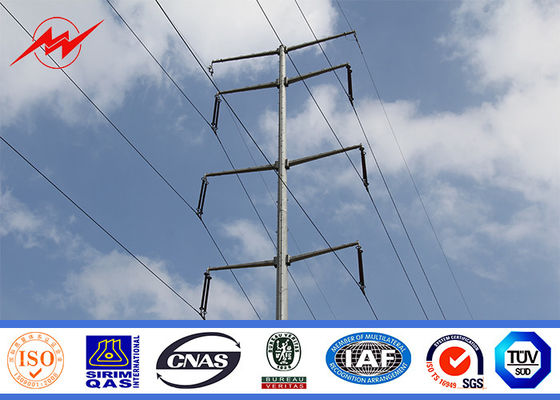

ภาพใหญ่ : Class 1 Electrical Power Pole 5mm Thickness Galvanization For 69kv Transmission Pole

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	MilkyWay
ได้รับการรับรอง:	ISO9001/BV/
Model Number:	Electric Power Pole

การชำระเงิน:

Minimum Order Quantity:	1 pcs
ราคา:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

ติดต่อ

รายละเอียดสินค้า

Product Name:	27M Electric Power Pole	Application:	Utility Transmission
Surface treatment:	hot dip galvanization	Certificate:	ISO
Thickness:	6mm	Dimenstion torlance:	+- 2%
แสงสูง:	metal power poles , steel utility poles

Class 1 Electrical Power Pole 5mm Thickness Galvanization For 69kv Transmission Pole

Specification:

Height	From 20ft to 100ft
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
Power Capacity	10kV to 220kV
Surface treatment	Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles	Slip joint, flanged connected
Welding Standard	AWS (American Welding Society ) D 1.1
Production Process	Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting → Recalibration →Packages
Packages	Packing with plastic paper or according to client’s request.

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Class 1 Electrical Power Pole 5mm Thickness Galvanization For 69kv Transmission Pole 0

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

Class 1 Electrical Power Pole 5mm Thickness Galvanization For 69kv Transmission Pole 1

Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
