40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung

จีน 40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung ผู้ผลิต
40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung ผู้ผลิต 40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung ผู้ผลิต 40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung ผู้ผลิต 40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung ผู้ผลิต

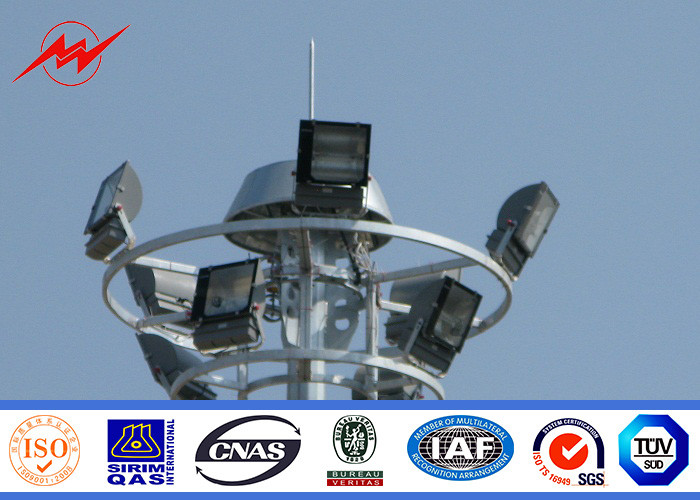

ภาพใหญ่ :  40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: MilkyWay
ได้รับการรับรอง: ISO9001/BV/
Model Number: High Mast Pole

การชำระเงิน:

Minimum Order Quantity: 1 pcs
ราคา: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
ติดต่อ
รายละเอียดสินค้า
Product Name: High Mast Pole Application: Airport lighting
Galvanization thickness: Average 85um Material: Q235
Thickness: 8mm Warranty: 15 years
แสงสูง:

high mast lighting pole

,

Park Light pole

 Galvanized 40M 8mm High Mast Pole for Plaza Lighting with Climbing Rung





 Specifications:



Specification:

20-50 meters high mast pole

Type

high mast pole

Shape

conical, hexagonal and octagonal

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester

power or any other standard by client required.

Standard

Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

high mast pole suit for

city square,wharf,stadium

Option of high mast pole

Height from 20m to 35m
Flange mounted or planted type

Production Process of high mast pole

Raw material test → Cutting →Molding or bending →Welidng

 (longitudinal )→Dimension verify →Flange welding →

Hole drilling →Calibration →Deburr→Galvanization or

powder coating ,painting →Recalibration→Thread →Packages



 Welding

 Using automatic internal and external double welding makes the welding beautiful in shape. And confirms  with international welding standard

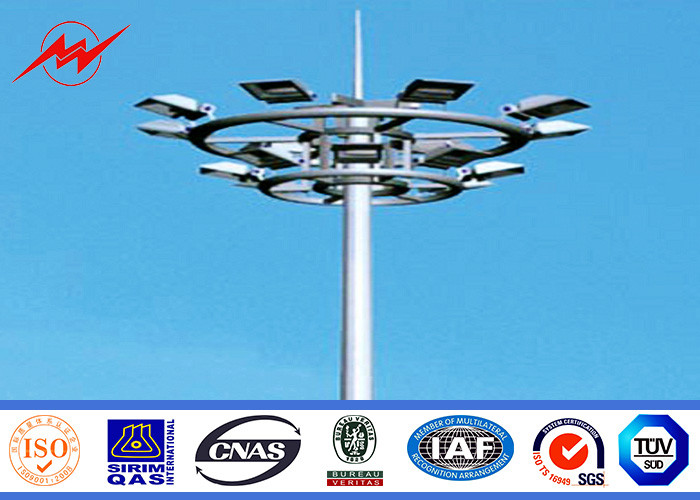

 40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung 0

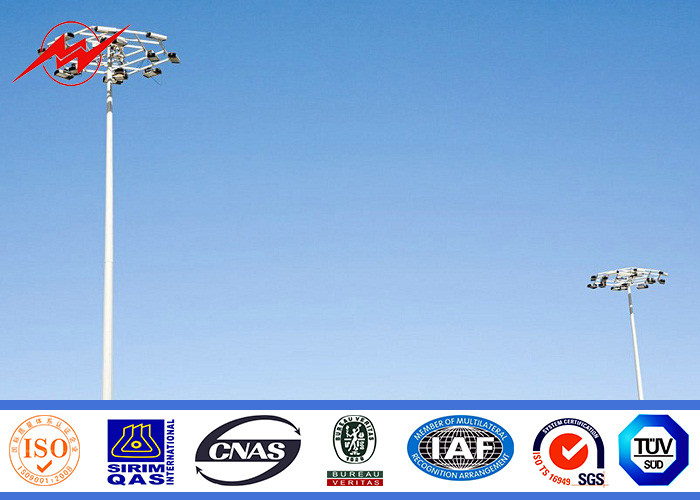

 More Photos:

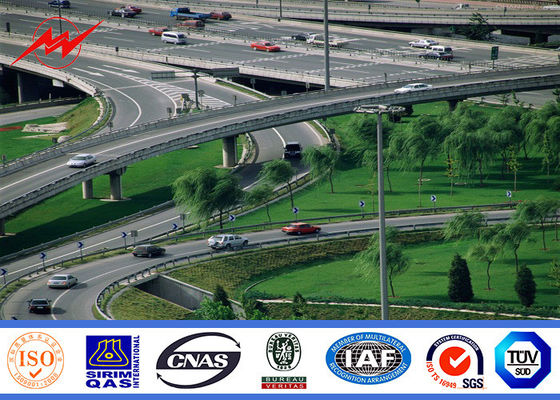

40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung 1

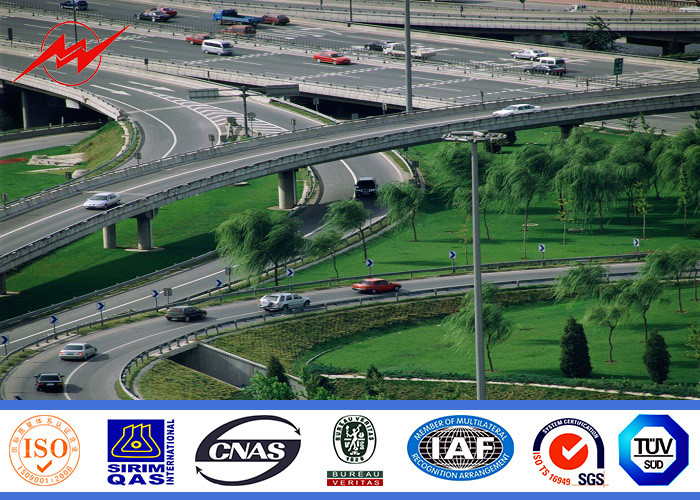

40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung 2





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
