40FT hot dip galvanized Steel Utility Pole for trasmission line

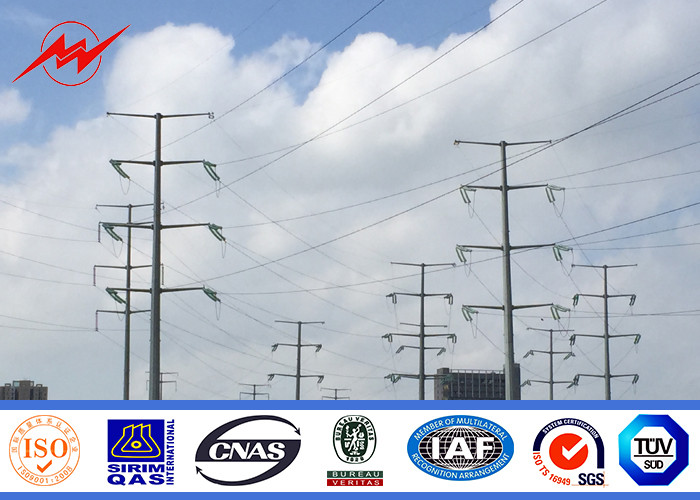

ภาพใหญ่ : 40FT hot dip galvanized Steel Utility Pole for trasmission line

รายละเอียดสินค้า:

Place of Origin:	Jiangsu,China
ชื่อแบรนด์:	Milky Way
ได้รับการรับรอง:	/BV/ISO9001
Model Number:	Steel Utility Pole

การชำระเงิน:

Minimum Order Quantity:	1 pcs
ราคา:	Negotiation
Packaging Details:	Naked Package or customerized
Delivery Time:	10-30 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	30,000 Tons per month

ติดต่อ

รายละเอียดสินค้า

Product Name:	40FT hot dip galvanized Steel Utility Pole for trasmission line	Shape:	Round,Conical,Octagonal
Height:	4M-30M	Material:	Steel,Q235,Q345,Gr65
Thickness:	2.5mm-16mm	Surface Finished:	Hot Dip Galvanized
Standard:	/BV/ISO9001
แสงสูง:	metal utility poles , electric telescoping pole

40FT hot dip galvanized Steel Utility Pole for trasmission line

Specification:

Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode .
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

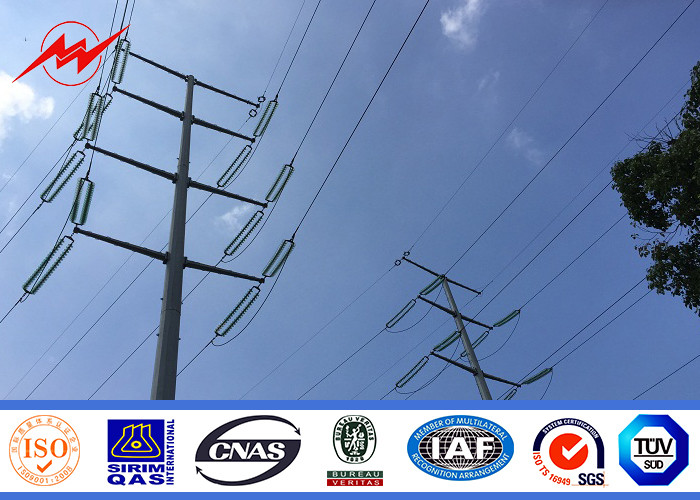

40FT hot dip galvanized Steel Utility Pole for trasmission line 0

Package

1. Normal:Cover by Mat or Straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of thepole.
2. Customized Design is available.
3. Container:40HQ,40GP,20GP

Product Material:

All of our material are purchased from famous mill factory to assure the quality
1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
Inspection

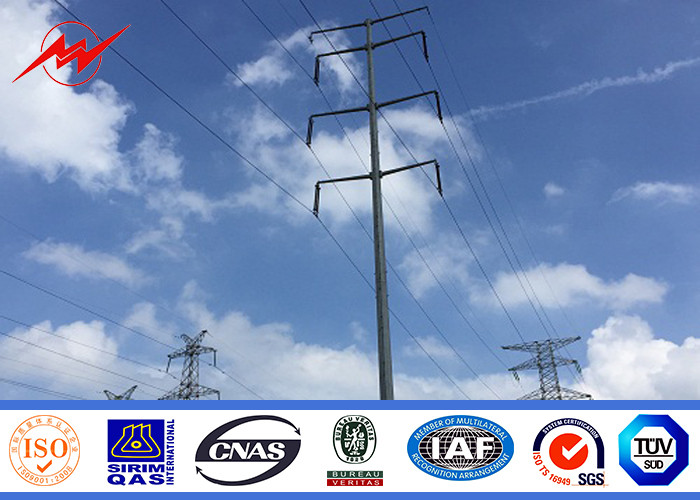

40FT hot dip galvanized Steel Utility Pole for trasmission line 1

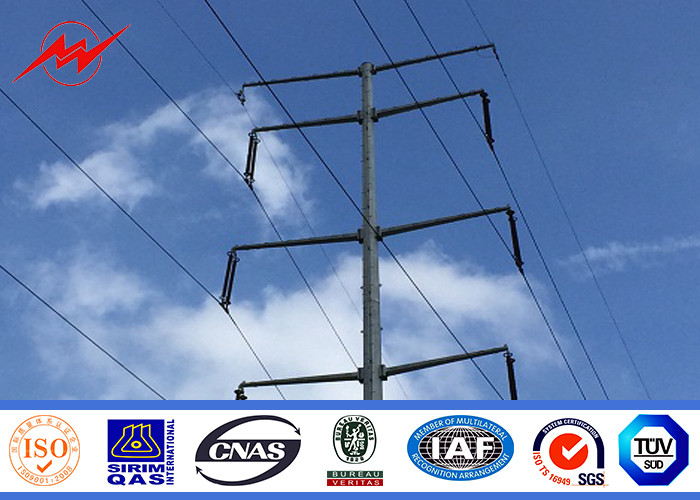

40FT hot dip galvanized Steel Utility Pole for trasmission line 2

Company Introduction

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on- NEA 220KV 30ft electric lighting poles factory
