35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System

ได้รับการรับรอง
อย่างดี ขั้วไฟฟ้าไฟฟ้า สำหรับการขาย
อย่างดี ขั้วไฟฟ้าไฟฟ้า สำหรับการขาย
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

สนทนาออนไลน์ตอนนี้ฉัน

35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System

ประเทศจีน 35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System ผู้ผลิต
35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System ผู้ผลิต 35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System ผู้ผลิต 35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System ผู้ผลิต 35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System ผู้ผลิต 35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System ผู้ผลิต

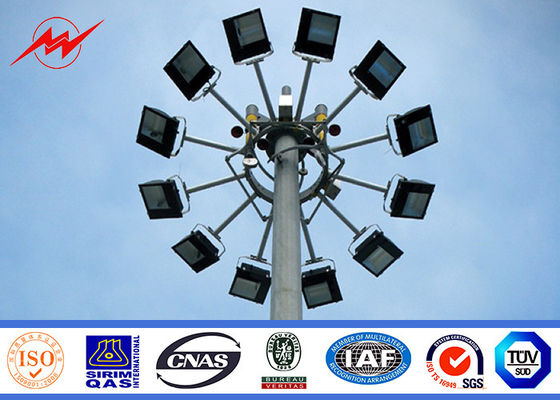

ภาพใหญ่ :  35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System

รายละเอียดสินค้า:

Place of Origin: Yixing,Jiangsu,China
ชื่อแบรนด์: Milky Way
ได้รับการรับรอง: ISO9001
Model Number: High Mast Light

การชำระเงิน:

Minimum Order Quantity: 1 Poles
ราคา: Negotation
Packaging Details: Naked Package or naked
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Contact Now
รายละเอียดสินค้า
Item Name: 25M High Mast Pole Material: S355JR
Section Thickness: 6mm,8mm,10mm Operate type: Electric rasing system
Surface Finished: Galvanization Application: Street way,highway,airport,Stadium

35M S355JR Round Galvanized Stadium High Mast Pole With 400kg Rasing Lifting System



Sourced from trusted vendors of market, the offered High Mast Poles are made available in several specifications as per the requirements of our clients. These poles are highly demanded in various construction sites, highways, road intersections and play grounds for providing multi-directional light with equal intensity.



Features:


Excellent brightness
Easy installation
Long operational life
Energy efficient





Quick Product Description-High Mast Lighting Pole



Item 25 MTR
Material Construction Q345(Gr50)
Cross section of mast in polygon((No. of Sides) dodecagon,hexadecagon
Thickness 4mm,6mm,8mm,10mm or customized design
Base & Top dia (OAF) 485/200mm
Thickness of galvanization(Average) 86 Microns
Size of opening door at base 360 x 1400 mm
Size of base plate diameter 685 mm
Size of base plate thickness 32 mm
Number of foundation bolts 12
Bolt diameter 28 mm





DESIGN

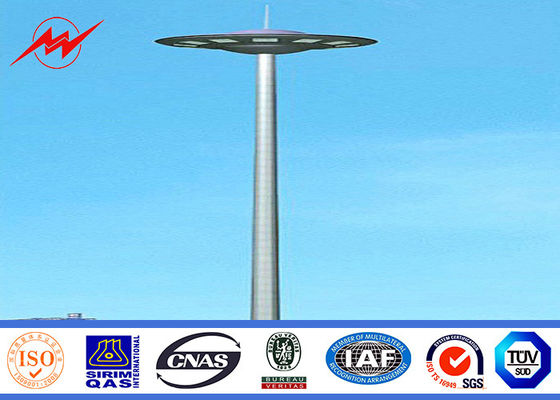

35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System



ACCESSORIES



IMPORTANT TECHNICAL FEATURES



FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.



WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.



FINISH :

The complete mast with component is fully hot dip galvanized for longer life.



LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.



Lower Device



35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System



Application



Any large area requiring lighting with the minimum of poles.
Airports
Habours
Highway
Sports ground
Parking Lots



35M Round Galvanized Stadium High Mast Light Pole With 400kg Rasing Lifting System



Company Information



Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.

We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:

lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.

The entire range of equipment is manufactured using superior quality raw material and ensures reliability.

These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
