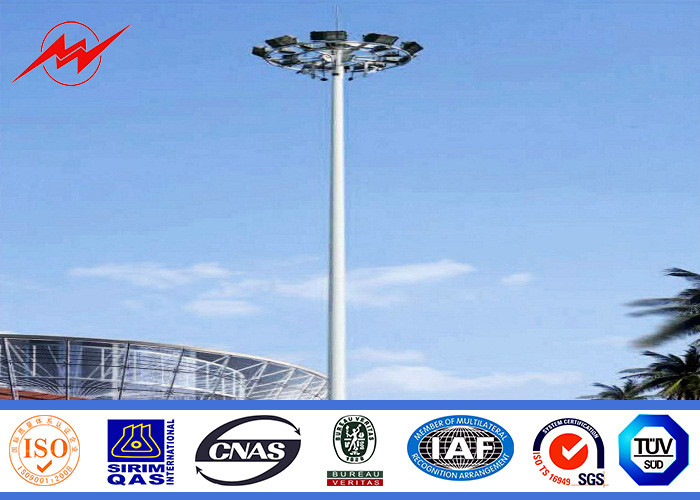

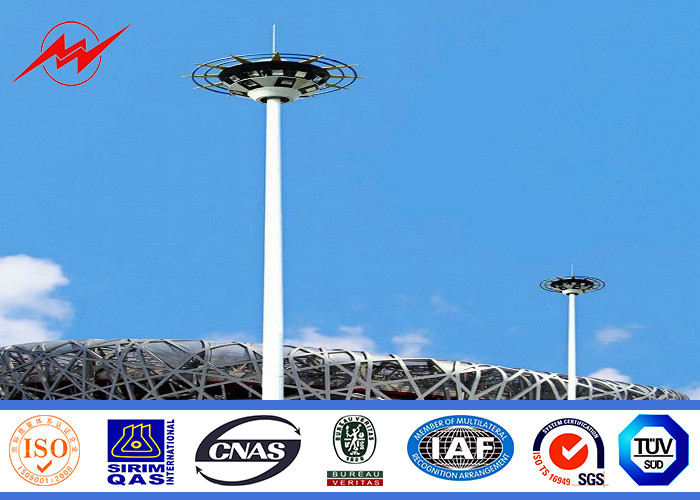

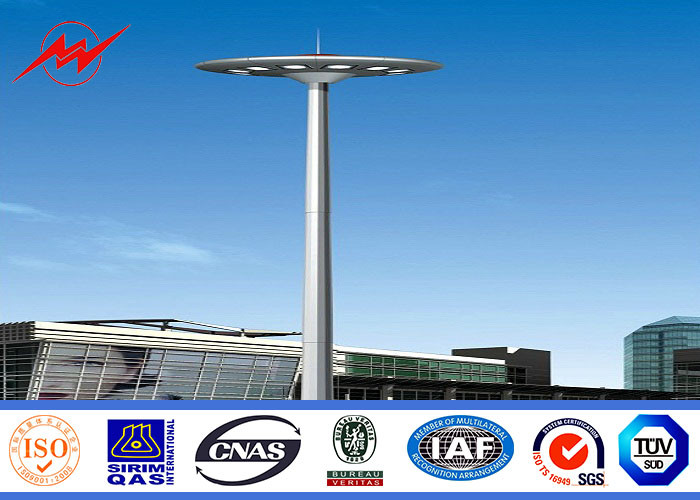

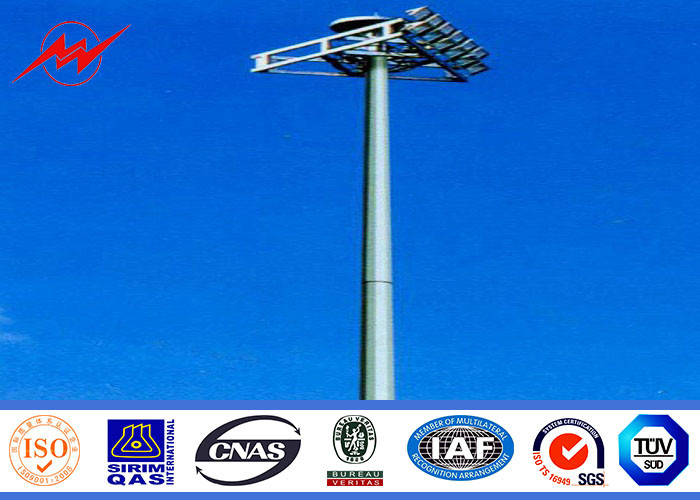

28m Q345 Customized Galvanized High Mast Pole With Lifting Systems

จีน 28m Q345 Customized Galvanized High Mast Pole With Lifting Systems ผู้ผลิต
28m Q345 Customized Galvanized High Mast Pole With Lifting Systems ผู้ผลิต 28m Q345 Customized Galvanized High Mast Pole With Lifting Systems ผู้ผลิต 28m Q345 Customized Galvanized High Mast Pole With Lifting Systems ผู้ผลิต 28m Q345 Customized Galvanized High Mast Pole With Lifting Systems ผู้ผลิต

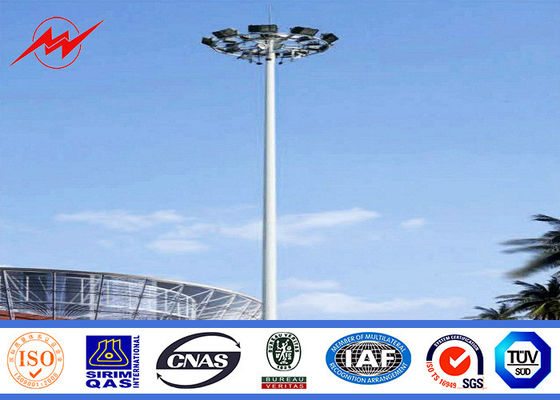

ภาพใหญ่ :  28m Q345 Customized Galvanized High Mast Pole With Lifting Systems

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: MilkyWay
ได้รับการรับรอง: ISO9001/BV/
Model Number: High Mast Pole

การชำระเงิน:

Minimum Order Quantity: 1 pcs
ราคา: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
ติดต่อ
รายละเอียดสินค้า
Product name: High Mast Pole Application: Airport lighting
Surface treatment: hot dip galvanization powder painting tolerance: +/-2%
welding standard: AWS D1.1 galvanization standard: ASTM A123
material: Q345 color: any
warrenty: 15 years life time: 50 years
แสงสูง:

high mast lighting pole

,

Park Light pole

28m Q345 customized galvanized High Mast Pole with lifting systems





 Specifications:

Height

From 20m to 55m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Optical assembly

of lighting fixture

IP 65

Electroshock resistant

protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of

lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile

strength

490 mpa

Max ultimate tensile

strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

Style

Size and styles are veriable as per customer request





 Description:
 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.



 The information to inquiry or purchase
 -Steel pole height
 -Dimension of the flange
 -Position and dimension of the service door
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Wind speed
 -Destination port
 -Other.



 28m Q345 Customized Galvanized High Mast Pole With Lifting Systems 0



 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

28m Q345 Customized Galvanized High Mast Pole With Lifting Systems 1



 Company Introduction:


 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.





 28m Q345 Customized Galvanized High Mast Pole With Lifting Systems 2
