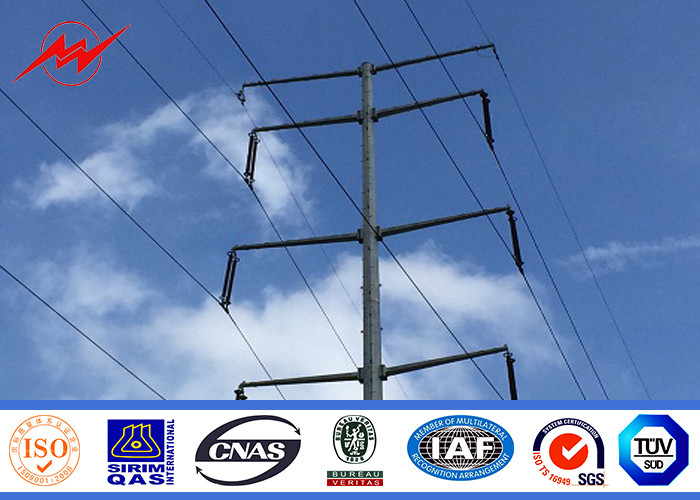

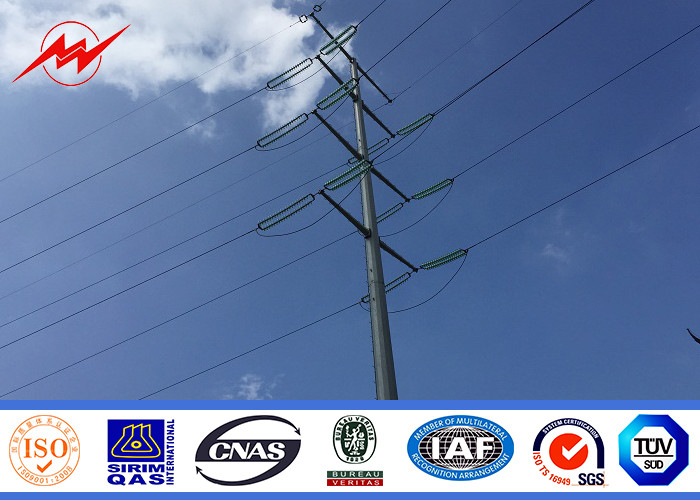

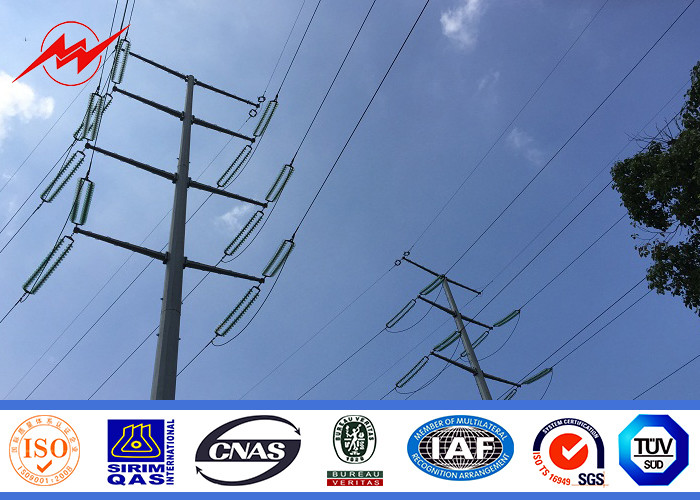

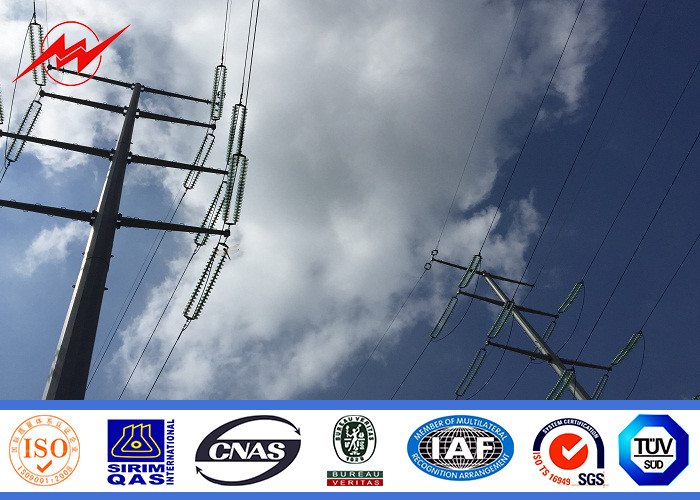

132 Kv Power Distribution Transmission Line Poles Hot Dip Galvanized For Overhead

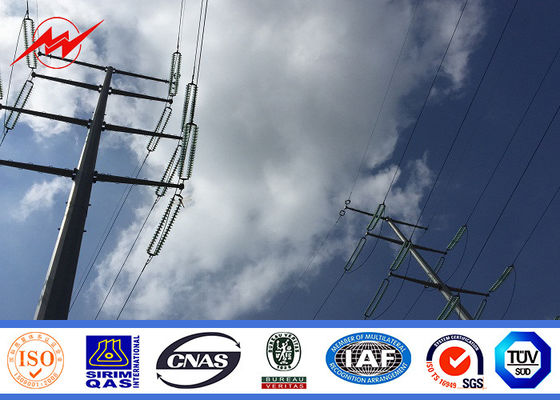

ภาพใหญ่ : 132 Kv Power Distribution Transmission Line Poles Hot Dip Galvanized For Overhead

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	MilkyWay
ได้รับการรับรอง:	CE/BV/
Model Number:	8 - 20m 132kv power distribution transmission Hot Dip Galvanized poles Electrical Power Pole for overhead

การชำระเงิน:

Minimum Order Quantity:	1 pcs
ราคา:	Negotiation
Packaging Details:	as per customers' request
Delivery Time:	20 days after paying the deposit
Payment Terms:	T/T, L/C
Supply Ability:	300 per week

ติดต่อ

รายละเอียดสินค้า

type:	8 - 20m 132kv power distribution transmission Hot Dip Galvanized poles Electrical Power Pole for overhead	color:	custom
Power:	10 KV ~550 KV	life time:	50 years
warrenty:	15 years	material:	steel
แสงสูง:	steel power pole , transmission line poles

8 - 20m 132kv power distribution transmission Hot Dip Galvanized poles Electrical Power Pole for overhead

Material:

All of our material are purchased from famous mill factory to assure the quality.

1.A mill certificate issued by the mill factory with stamp and signature must be provided before unload
the material in our factory ,otherwise we have our reason to refuse the material .

2.Before put into production ,all the material must pass the chemical and physical analysis to make
sure that they have meet the requested strength and component.

Inspection:

To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,
especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate.
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed
QC in every manufacure steps and beofore every shipment.

Specifications:

Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Lamp power	20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz
Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode .
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal ) →Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

132 Kv Power Distribution Transmission Line Poles Hot Dip Galvanized For Overhead 0

Description:

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street
,road ,square ,palaestra.and so on.

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV
transmission poels ,our products have been deliveried to more than 70 contries and areas ,including
America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on

132 Kv Power Distribution Transmission Line Poles Hot Dip Galvanized For Overhead 1

Design and Detail :

Lofting and design software :We have transmisson power pole design software which can help us
design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the
design the drawing accuratly.
