รายละเอียดสินค้า:
การชำระเงิน:
|
| Product Name: | Electric Telescoping Power Pole | Application: | Transmission Distribution Line |
|---|---|---|---|
| Length: | Within 14m once forming without slip joint | Shape: | Octagonal, Polygonal or Tapered round |
| Wind load resistance: | 30m/S | Thickness: | 1mm-36mm |
| แสงสูง: | electric power pole,steel power pole |
||

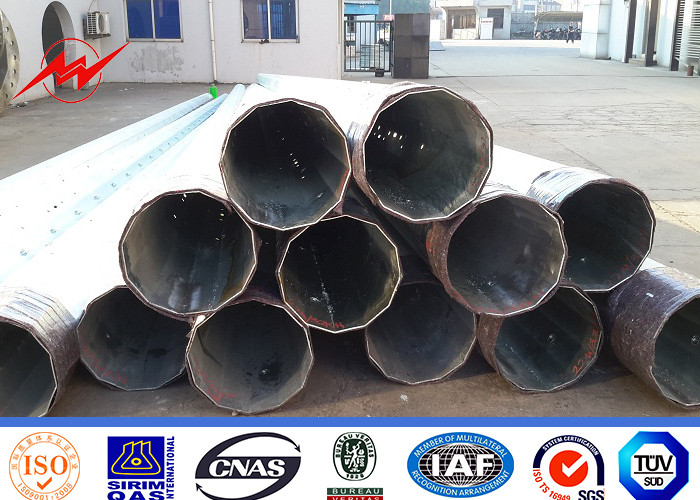

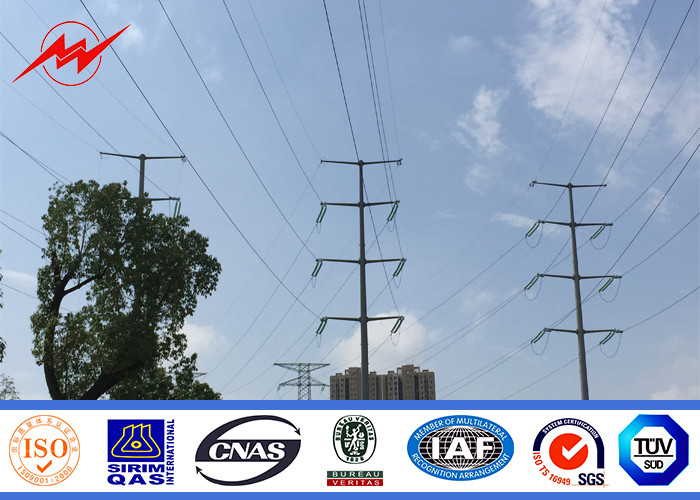

11kv 14m 1200daN Electric Telescoping Power Pole for Transmission Distribution Line
Specification:
| Suit for | Electricity distribution |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
| Torlance of the dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |

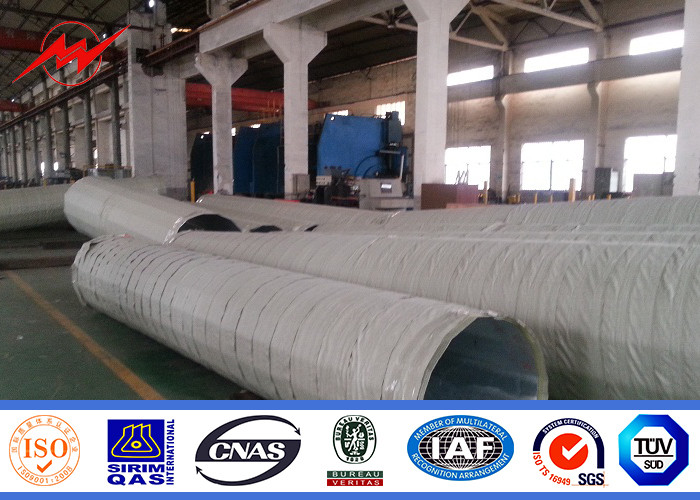

| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data |
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone- shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.
Standard

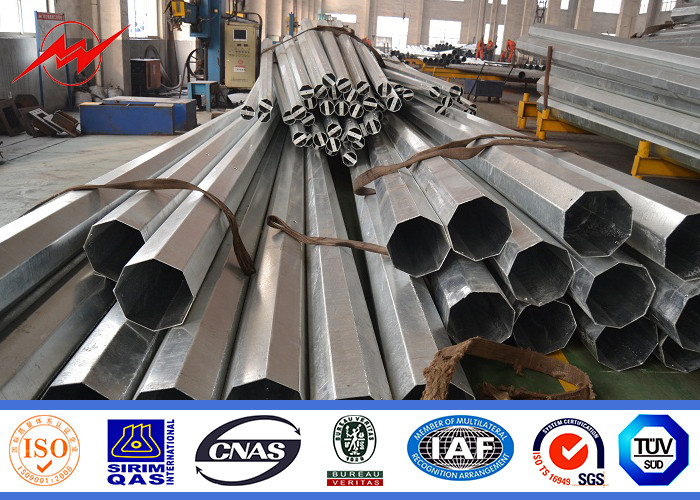

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
