10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles

จีน 10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles ผู้ผลิต
10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles ผู้ผลิต 10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles ผู้ผลิต

ภาพใหญ่ :  10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: Milky Way
ได้รับการรับรอง: ISO//BV
Model Number: 10.5M 800DAN Utility Poles Specification

การชำระเงิน:

Minimum Order Quantity: one 40HQ
ราคา: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
ติดต่อ
รายละเอียดสินค้า
Style: hot dip galvanized Type: straight pole, tensile pole, turn pole
Power: 10kv~550kv Tolance of dimenstion: +-2%
Shape: conoid ,multi-pyramidal,columniform,polygonal or conical Design of pole: against earthquake of 8 grade
แสงสูง:

metal power poles

,

electric utility poles

10.5M 800DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles Specification

Specifications

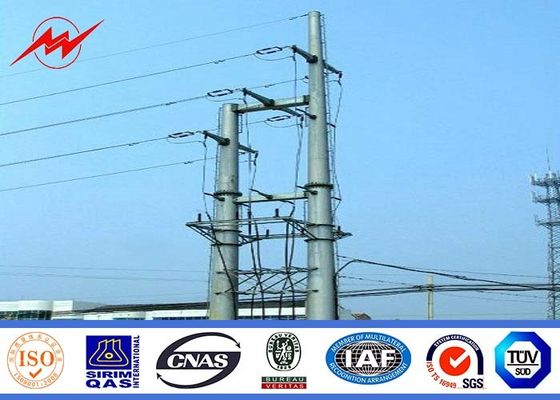

10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles 0



Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
               Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

SS400,
SS490, to ST52-

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per

 customer requirement

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .


Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We  has past flaw testing.Internal and external double welding
makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1


Production Process

Rew material test → Cuttingj →Molding or bending →

Welidng (longitudinal )
→Dimension verify →Flange welding →Hole drilling →

Calibration → Deburr
→Galvanization or powder coating ,painting →Recalibration →Thread
→Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or

OT can loading
how many pcs will calculation base on the client actually

specification and data.




Options:
• The Power Distribution Pole is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The Power Distribution Pole covers Voltage between 10-220KV.
• The Power Distribution Pole includes: suspension pole, stain pole and angle pole in different forms.
• Standard Corrosion Protection: hot dip galvanising (above and in-ground)
• Additional in-ground protection is available for special circumstances (soil condition). For example: Epoxy Coating.
• Pre-drilling for removable safety steps is available.
• Cross arms available.







FEATURES



hot galvanized garden light post
good looking garden lighting poles
customized powdered painting
3m, 3.5m 4m, 4.5m 5m, 6m, 7m



WE ARE MANUFACTURER SINCE 1992



Experience: Our company was set up in 1992, having over 24 years of production experience in galvanized garden light poles.

Production Capacity: We manufacture galvanized garden light poles from 3M-35M at the capacity of 20,000 poles per month.

Production lines: For galvanized garden light poles we carry on vertical production to get good control of quality and cost

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line

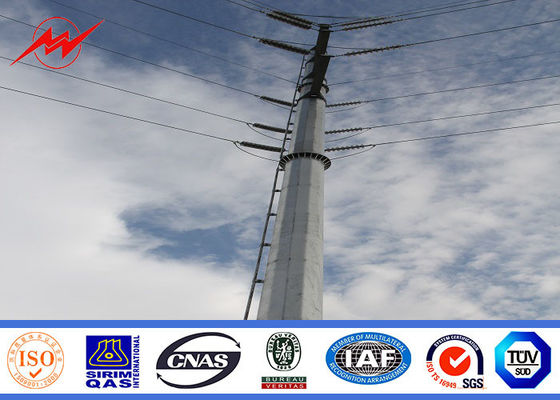

10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles 1



ADVANTAGES



OEM&ODM service available

Great anti-corrosion performance

Long life time: 25 years long life span

BAOSTEEL Q235 steel, high strength and great resilience

Dual protection treatments: hot galvanized first and then powder paint

Multiple painting colors available: Default color Gray. Custom available

Dismountable arms and foundation kit: Only a screwdriver, requiring no welding





10.5M 800 DAN Steel Power Pole Double Circuit Transmission Line Electric Utility Poles 2
